Wintriss Cam Box PCB ASSY C42416 Data Instruments 8 Channel Relay Board

Wintriss Cam Box Circuit Board – Data Instruments ASSY C42416

Industrial relay interface PCB used in Wintriss press control and automation systems.
Manufactured by Data Instruments, this board provides multiple channel relay outputs for machine control and signal switching applications.

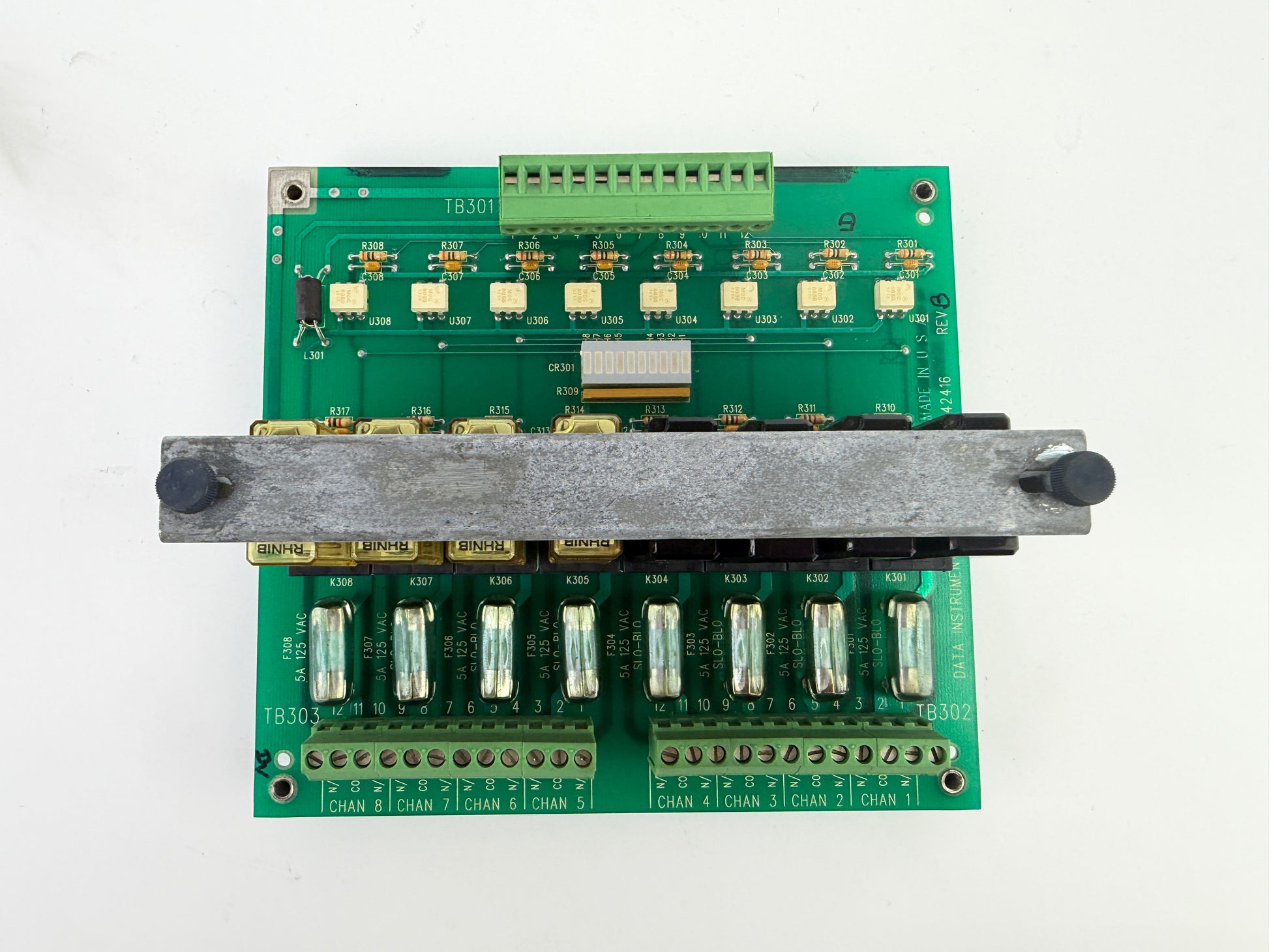

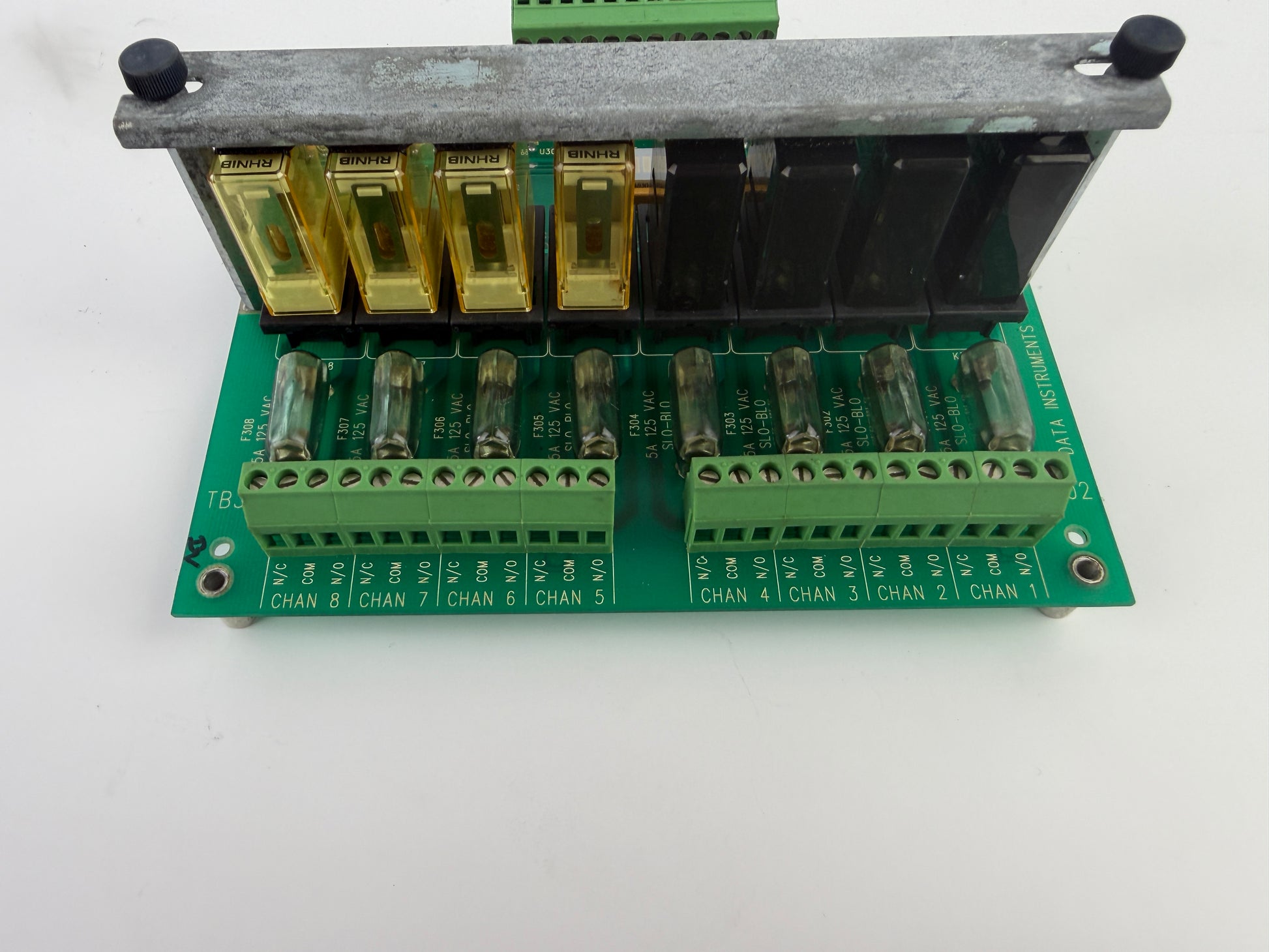

The board features 8 channels with integrated fuse protection and plug-in relay modules, designed for reliable operation in industrial environments.

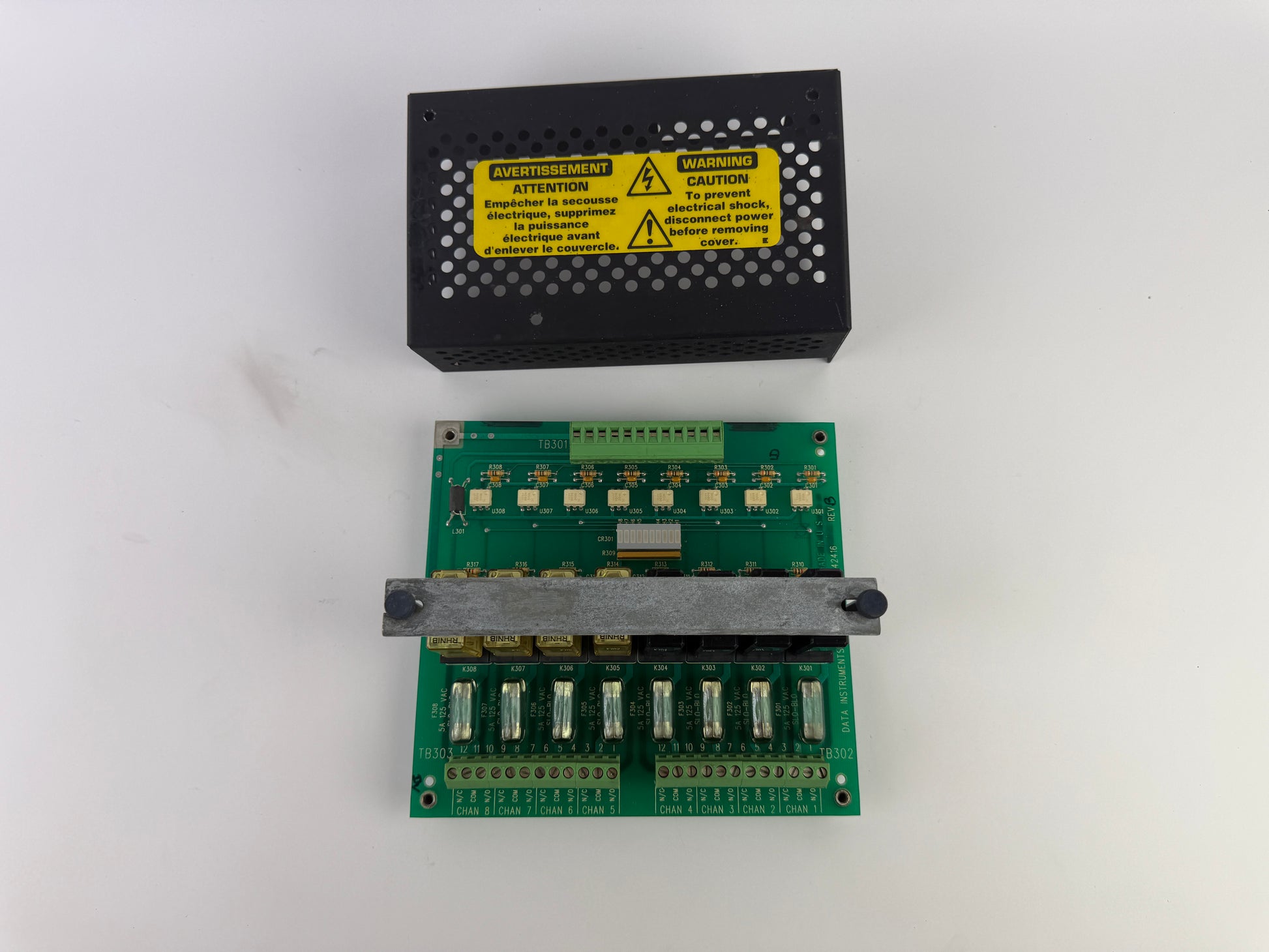

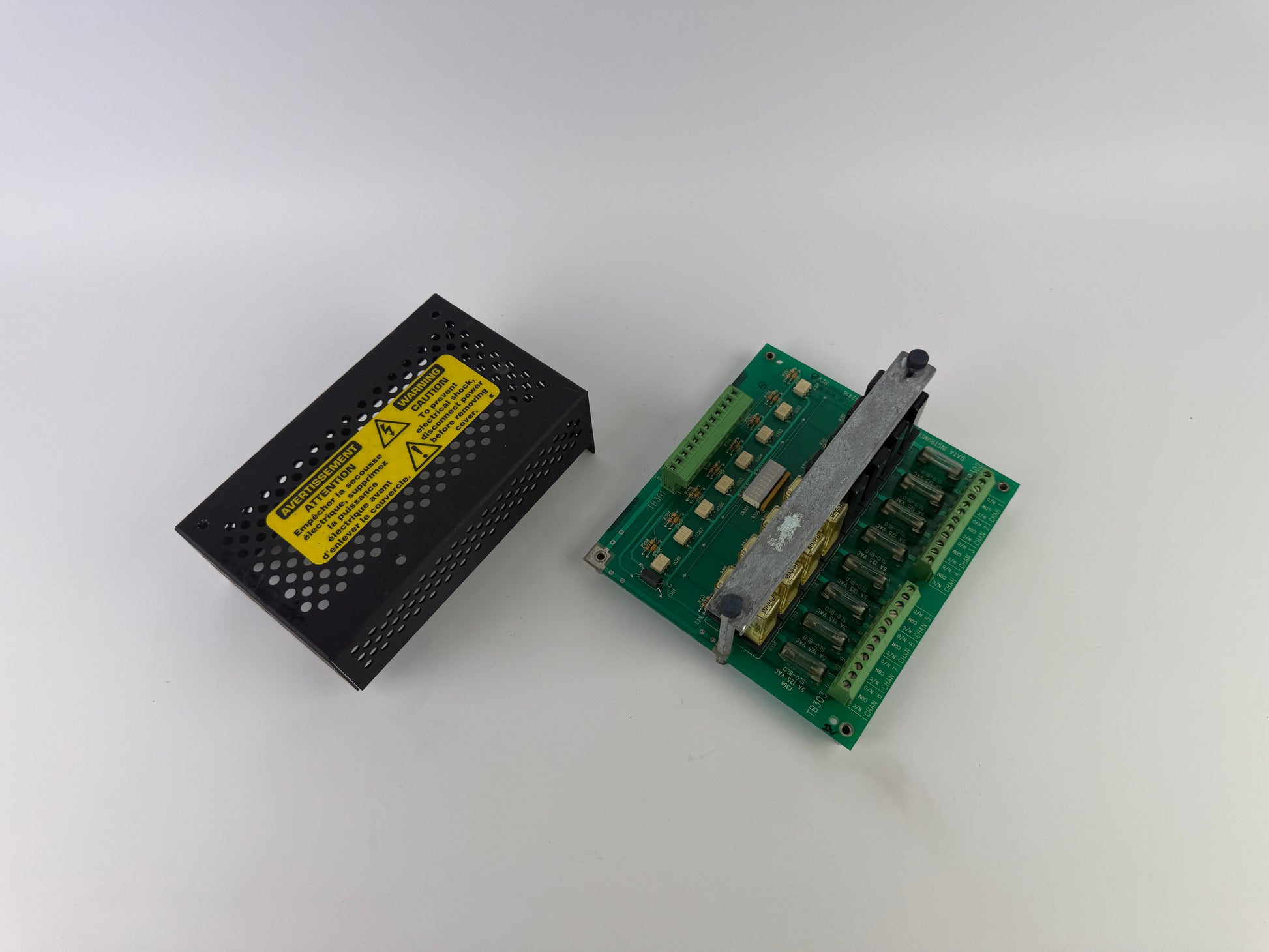

Protective metal cover included.

Technical Specifications

Manufacturer: Data Instruments

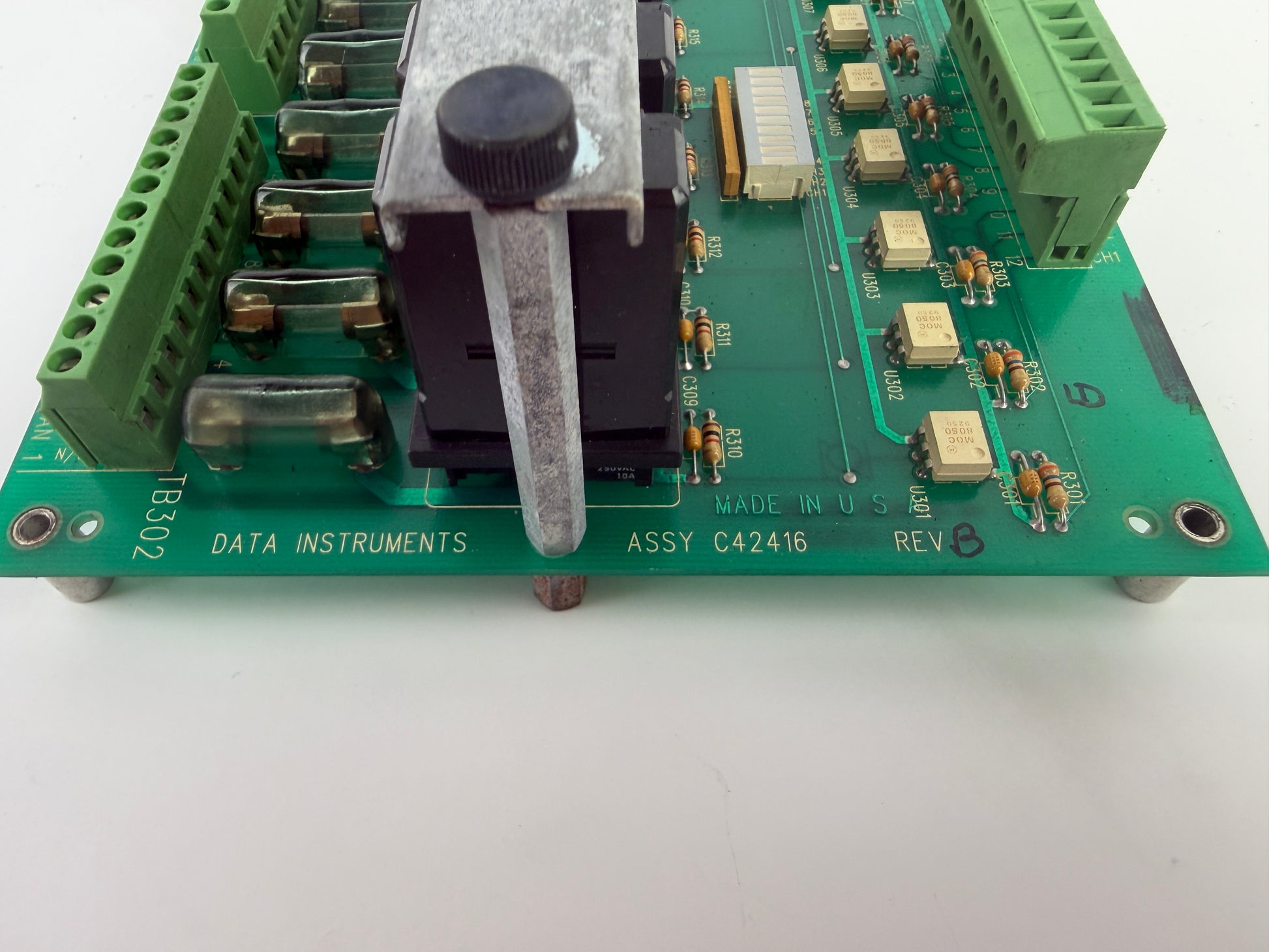

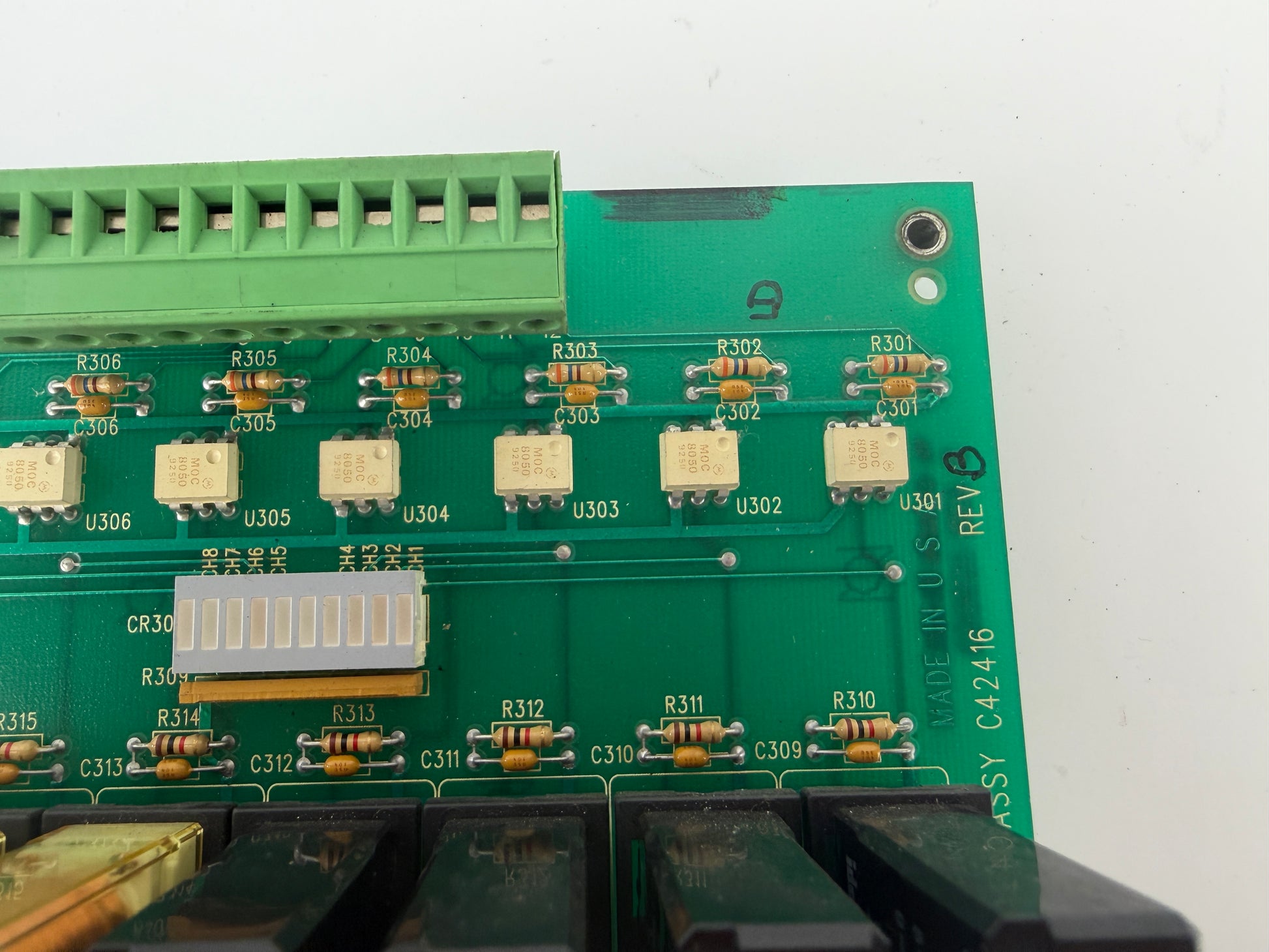

Assembly number: C42416
Revision: REV B

Application: Wintriss cam box control system
Type: Relay output interface board

Number of channels: 8

Fuse rating:
5A 125V AC (per channel)

Relay modules installed:
RHNIB type plug-in relays

Terminal blocks:

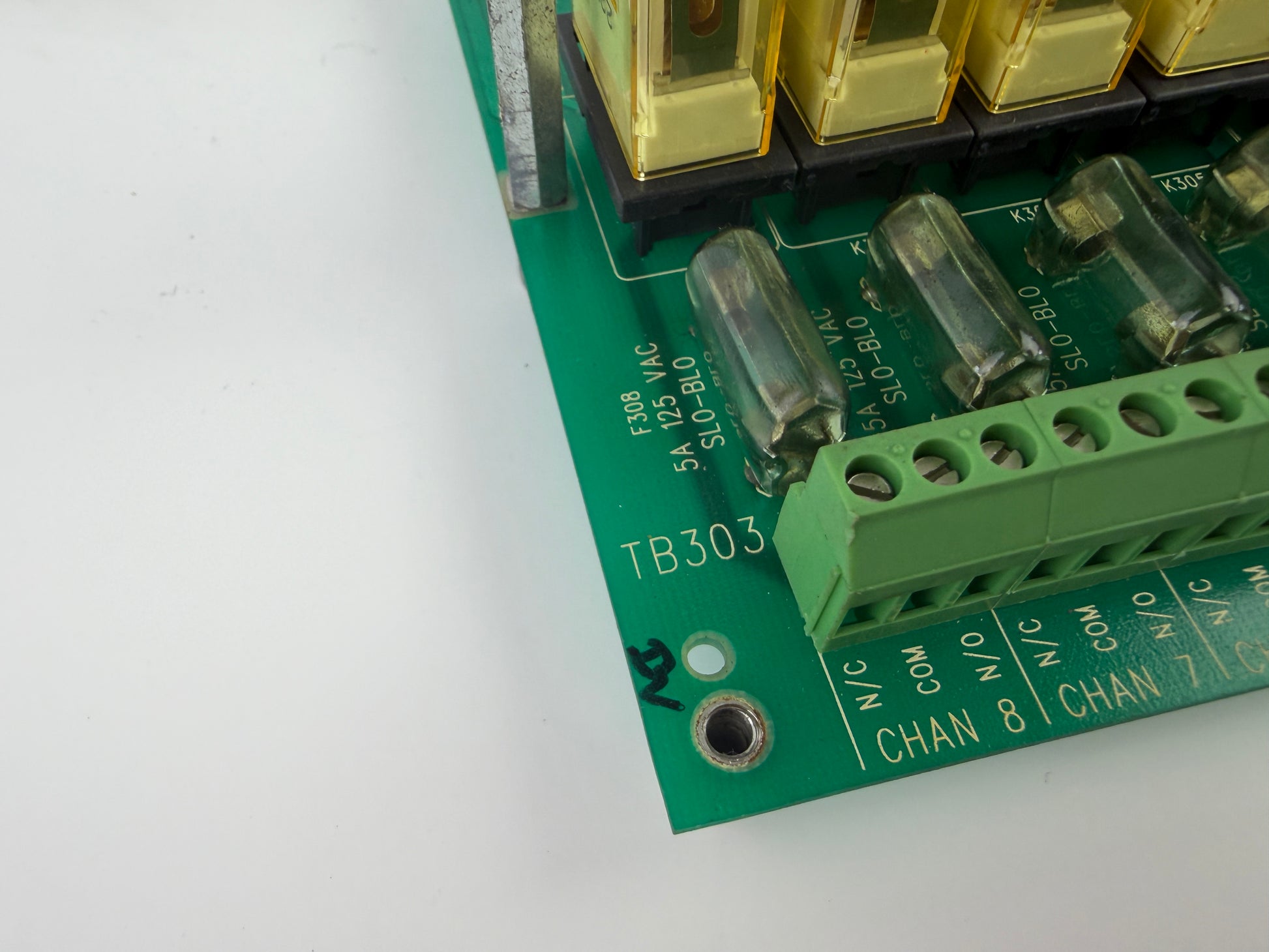

TB301
TB302
TB303

Connection type:
Screw terminal industrial connectors

Country of manufacture:
USA

Included:
Protective metal cover

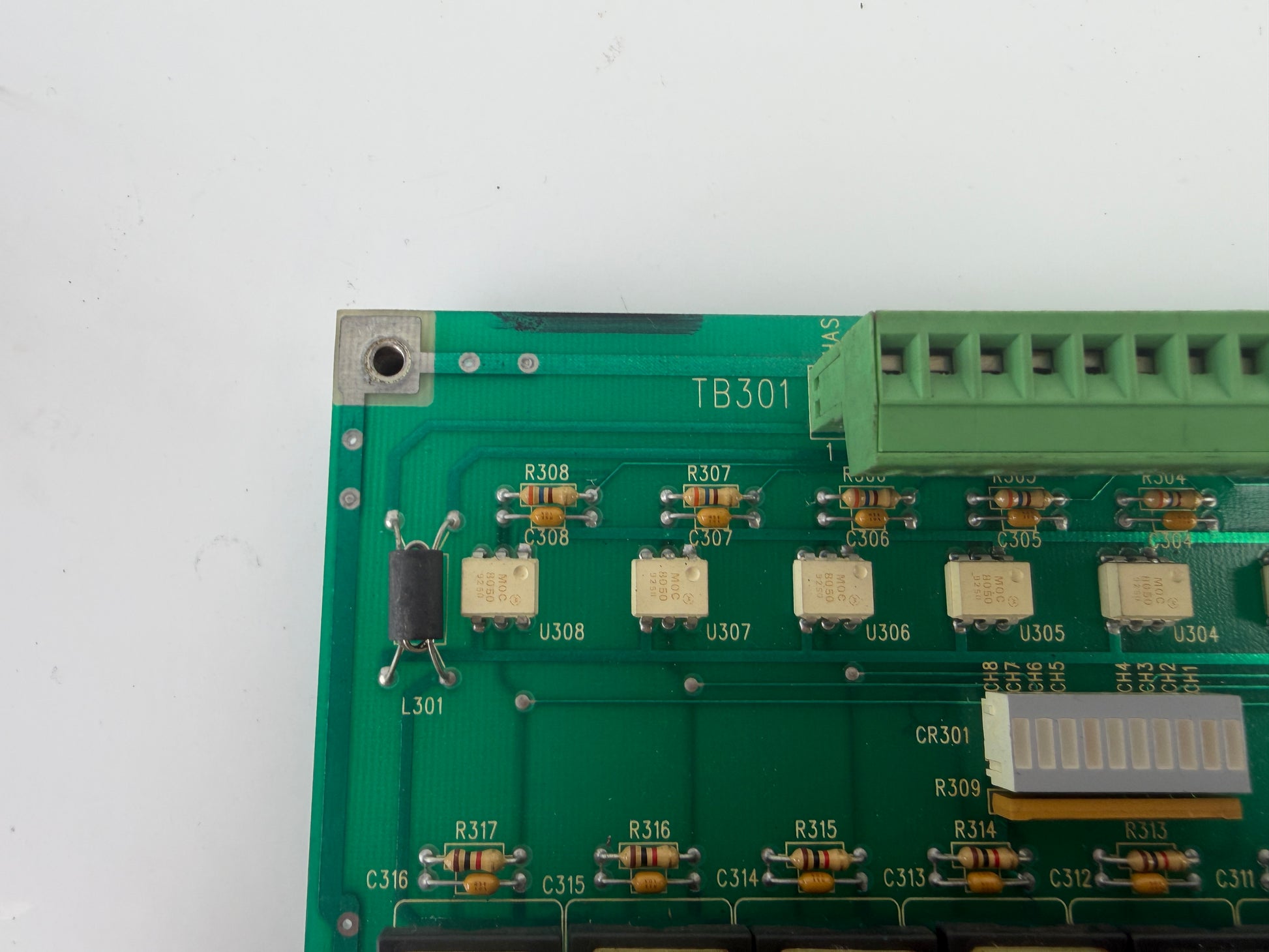

Item condition: Used, in perfect working condition. The item is supplied exactly as shown in the photos.
