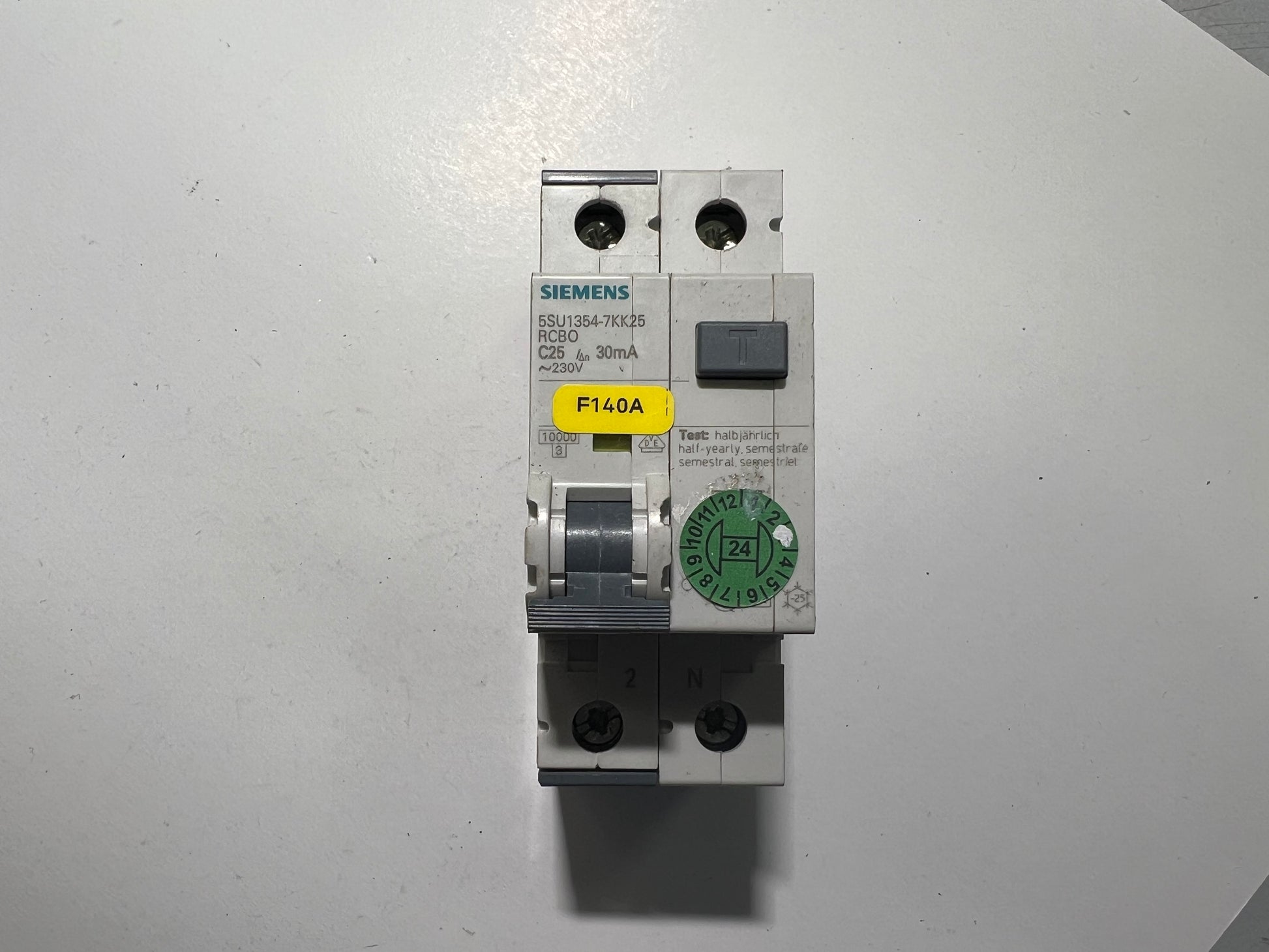

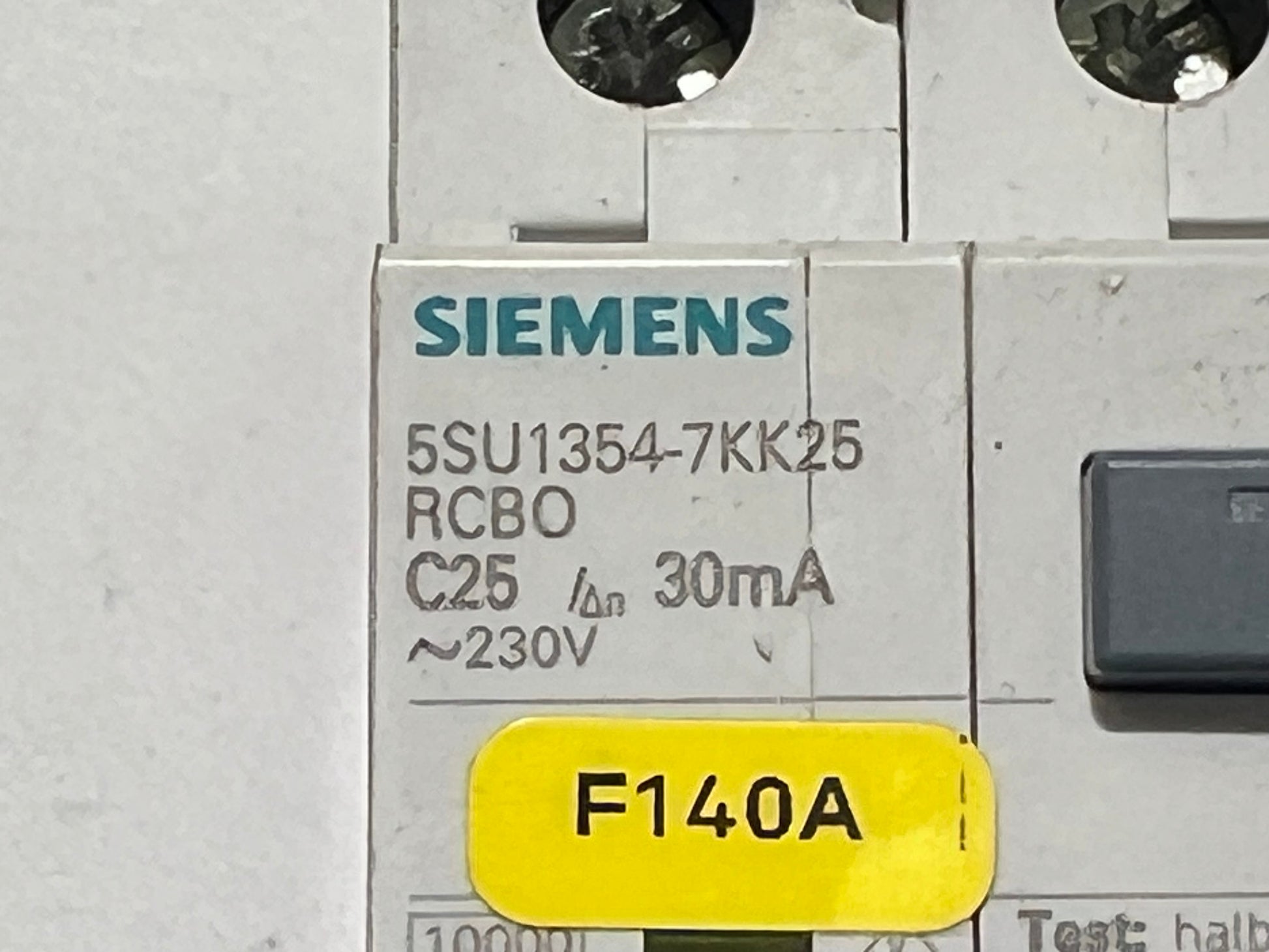

Siemens 5SU1354-7KK25 RCBO C25 30mA 230V 6kA Circuit Breaker

Siemens 5SU1354-7KK25 RCBO (Residual Current Circuit Breaker with Overcurrent Protection).
Combines the functions of a miniature circuit breaker (MCB) and a residual current device (RCD) in one unit.
Provides full protection against overload, short-circuit, and earth leakage faults.
Compact design for DIN rail installation, suitable for residential, commercial, and industrial distribution systems.

Technical Specifications:

• Manufacturer: Siemens

• Series: 5SU1

• Model: 5SU1354-7KK25

• Type: RCBO (Residual Current Circuit Breaker with Overcurrent Protection)

• Rated Current: 25 A

• Tripping Characteristic: C

• Rated Voltage: 230 V AC

• Rated Residual Current: 30 mA

• Breaking Capacity: 6 kA

• Poles: 1P+N

• Mounting: DIN rail

Applications:
Ideal for single-phase final circuits requiring both overcurrent and residual current protection, ensuring safe operation in residential, commercial, and industrial panels.

Item condition: Used, in perfect working condition.
