Red Lion Controls APLVD400 Digital Panel Meter – DC Voltmeter

Industrial digital panel meter manufactured by Red Lion Controls, designed for accurate DC voltage measurement in control panels and industrial equipment.

Model APLVD400 features a clear digital display and configurable decimal point selection, allowing flexible integration into automation and monitoring systems.

Commonly used in industrial control cabinets, machinery monitoring, and electrical measurement applications.

Technical Specifications

Manufacturer: Red Lion Controls
Model: APLVD400
Series: APLVD

Type: Digital panel meter
Measurement type: DC voltage

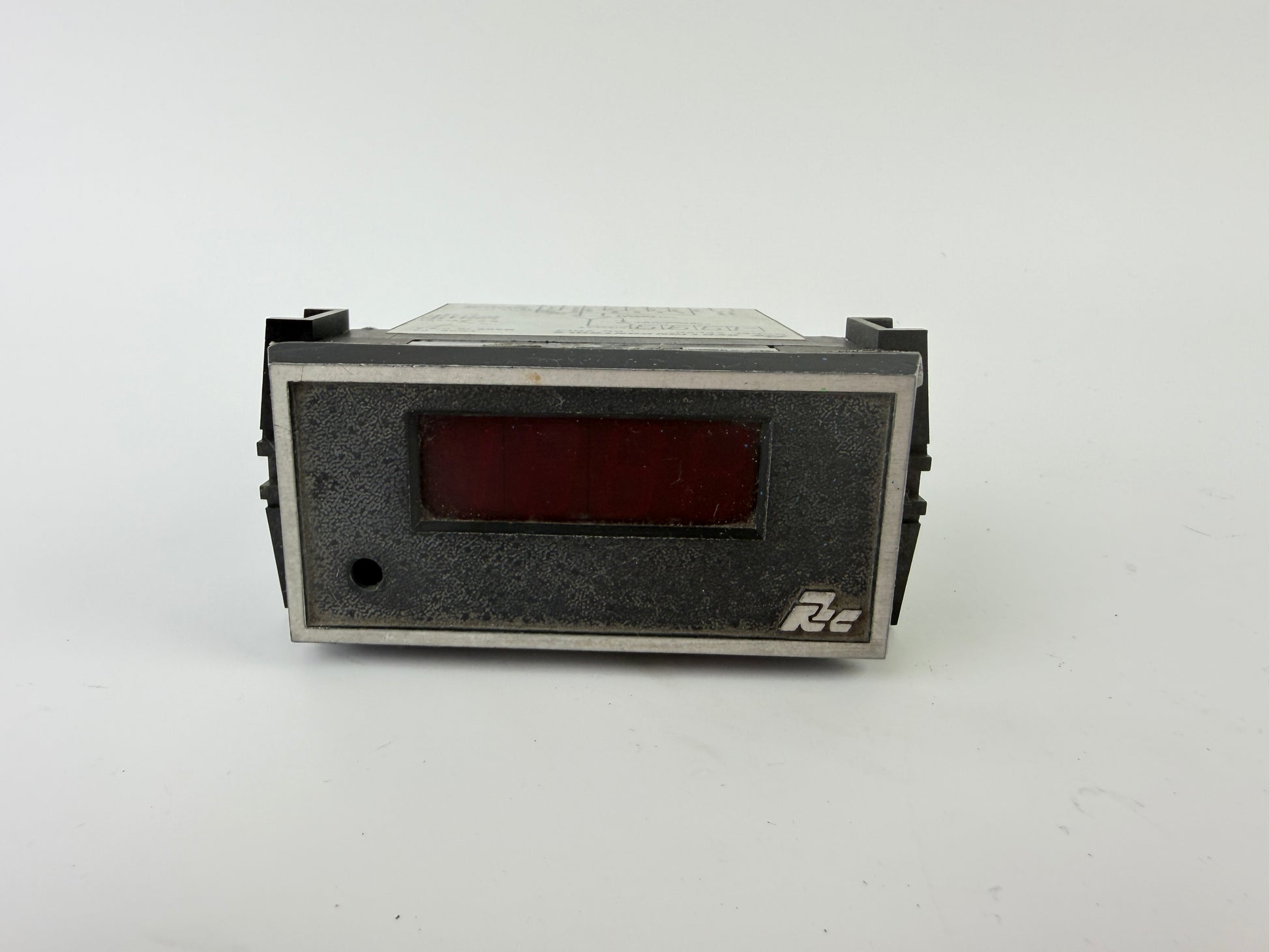

Display type: LED digital display

Input type:
DC voltage input (basic input 0–1.9999 V with scaling options)

Decimal point selection:
Configurable via D.P. select switch

Calibration adjustment:
Front panel calibration adjustment

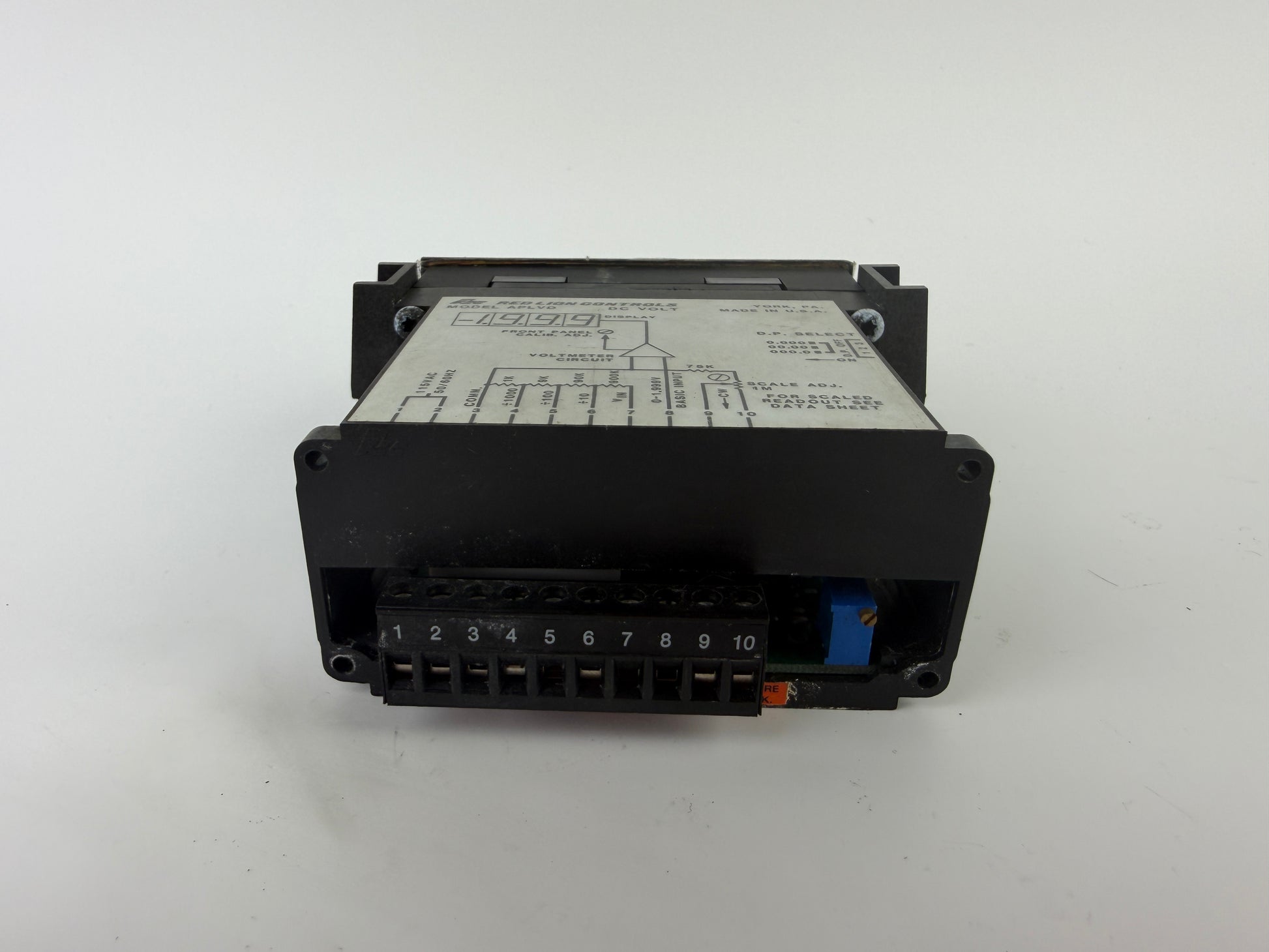

Connection:
Screw terminal connection (10 terminals)

Mounting type:
Panel mount

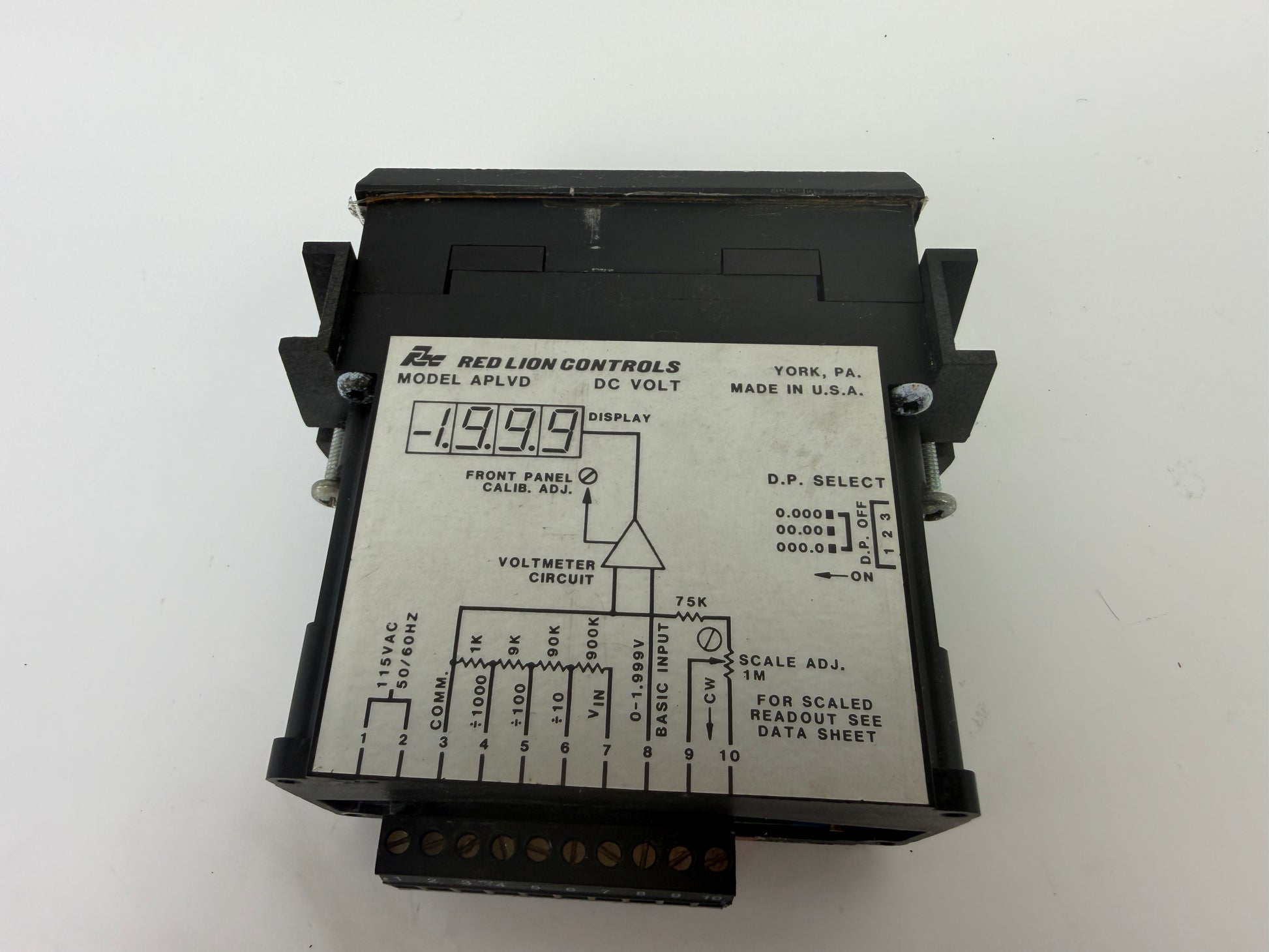

Frequency (power supply reference on diagram):
50/60 Hz

Country of manufacture:
USA

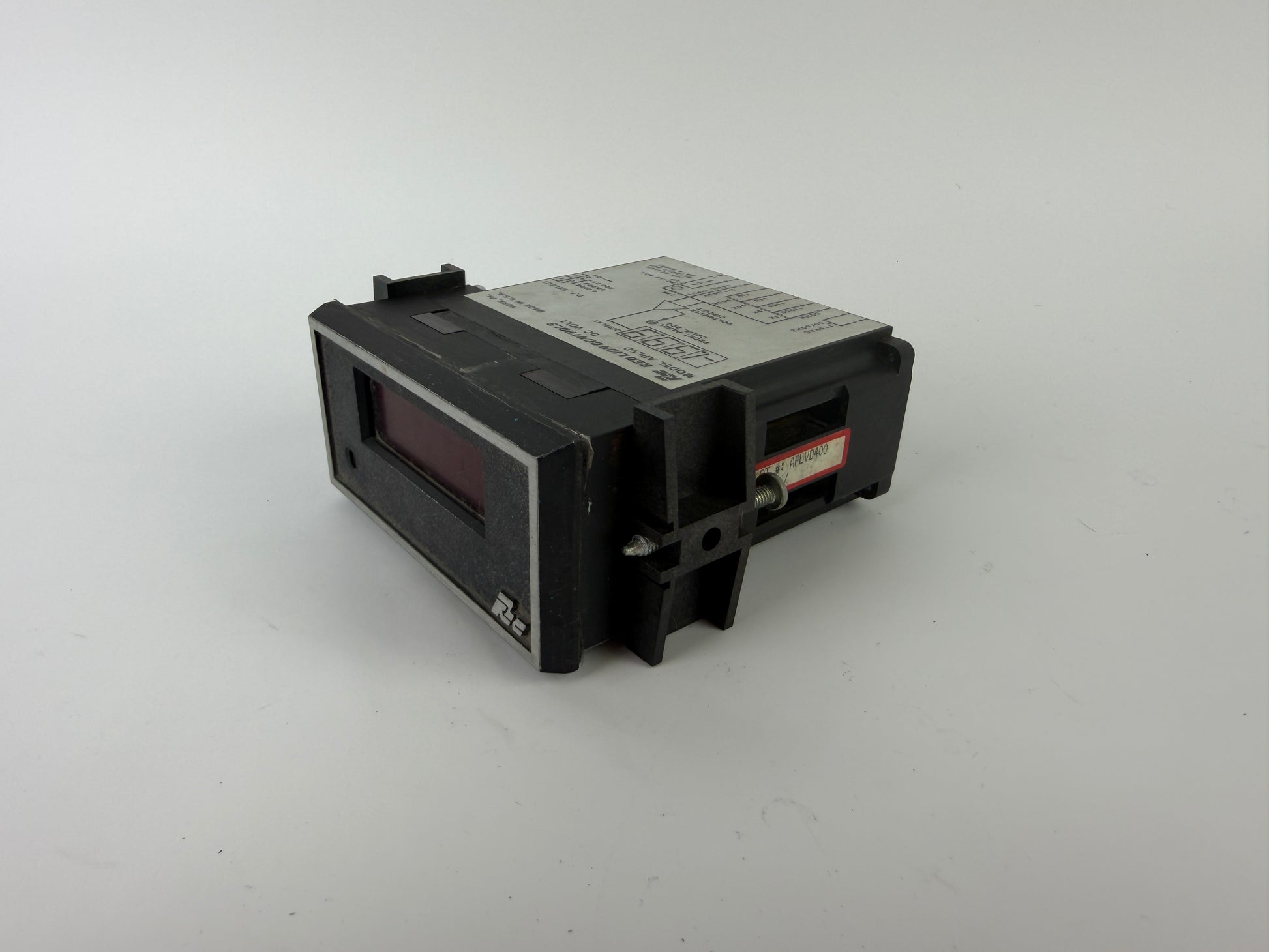

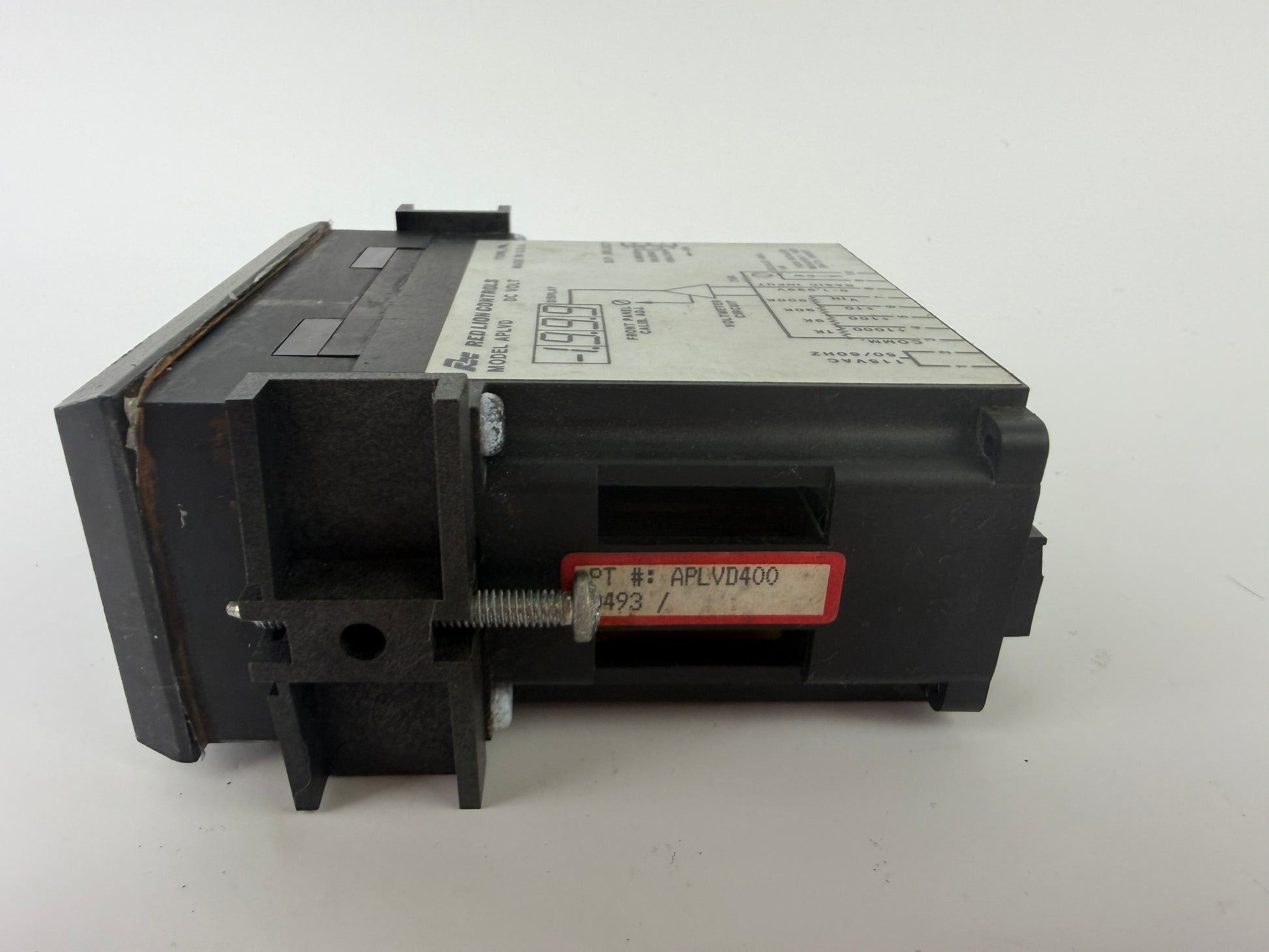

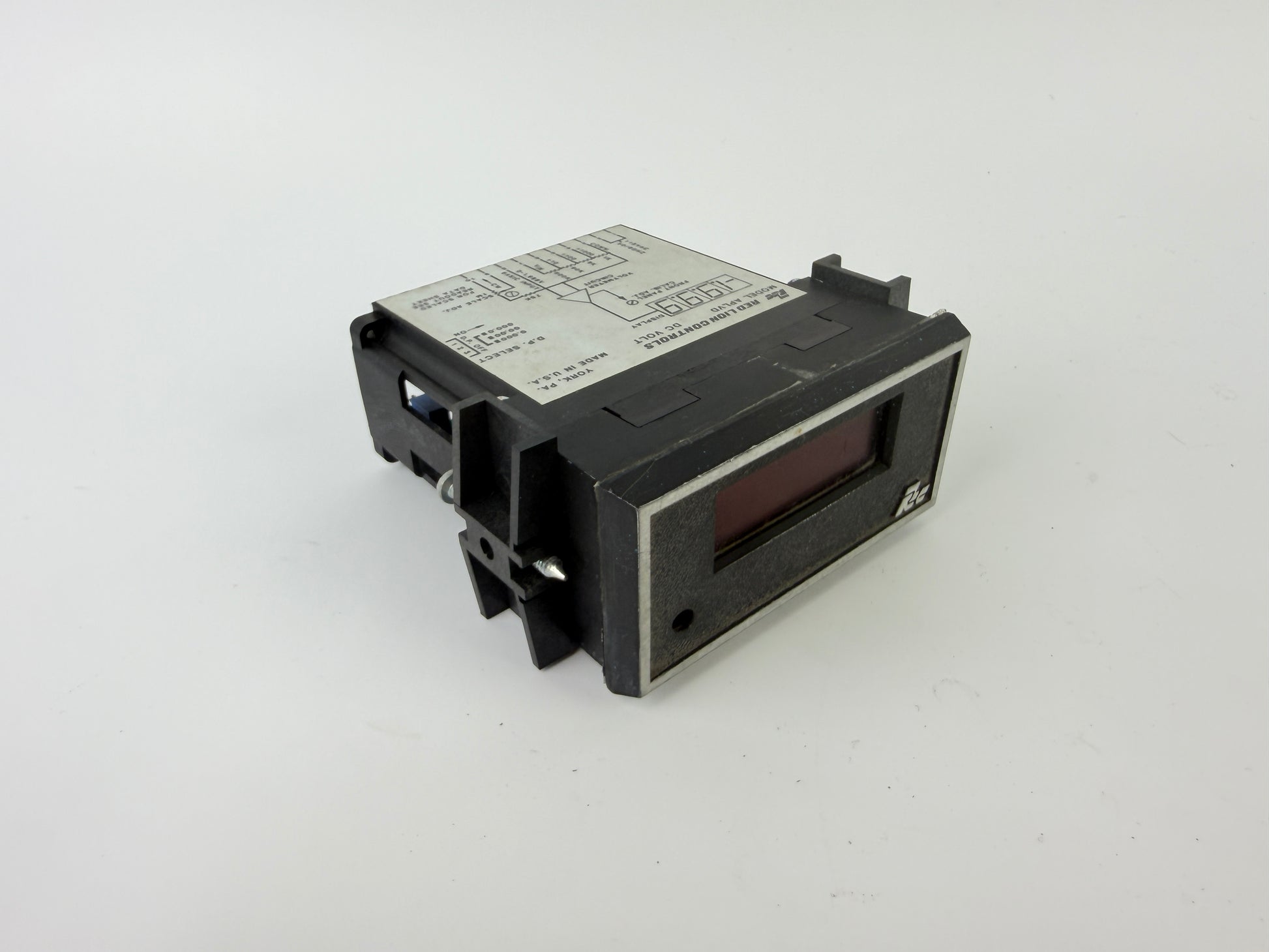

Item condition: Used, in perfect working condition. The item is supplied exactly as shown in the photos.
