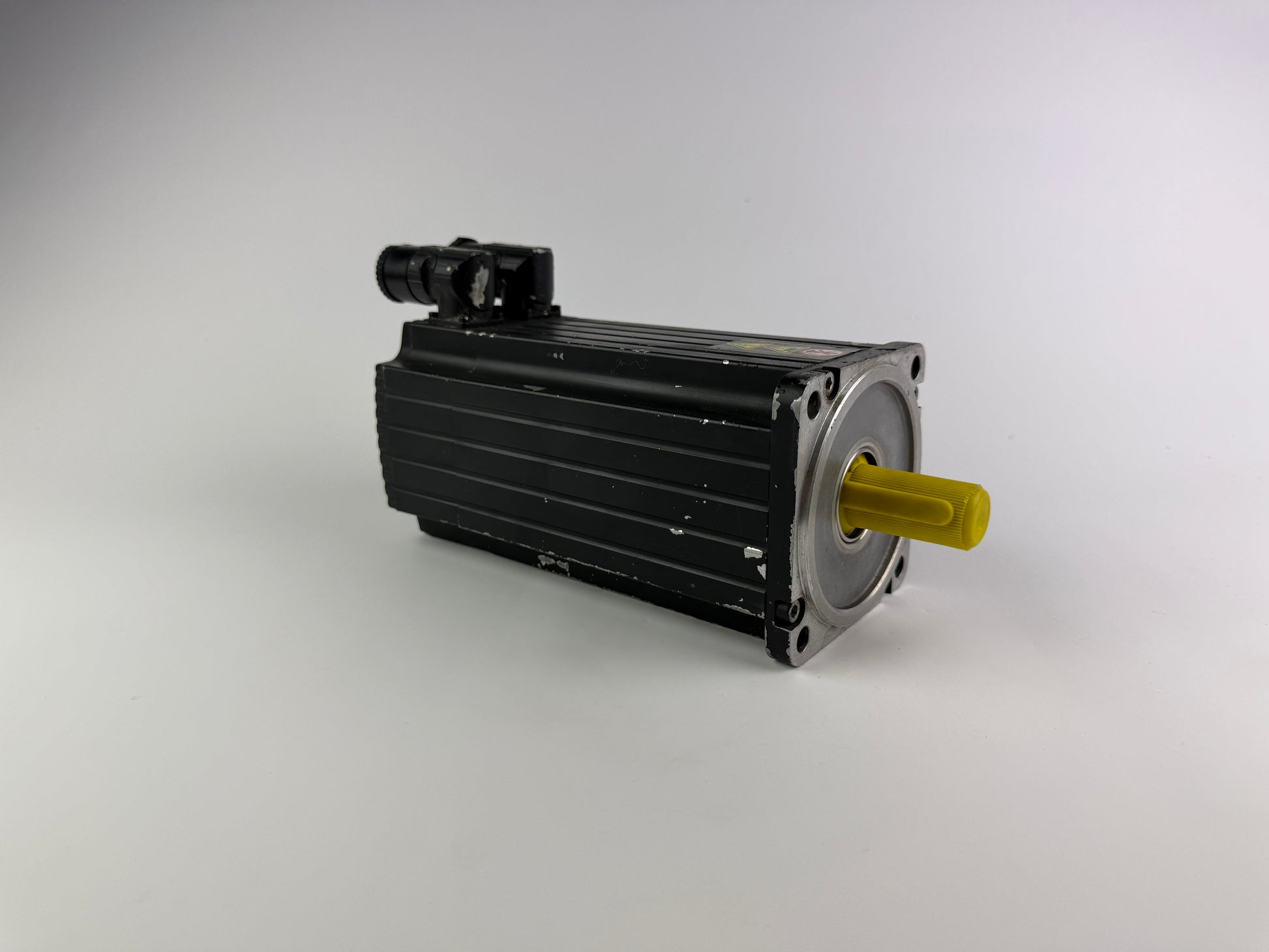

MOOG G414-805A Brushless Servomotor – 2.31 kW – G400 Series

The MOOG G414-805A is a high-performance brushless servomotor from the renowned G400 Series, designed for demanding industrial automation, CNC machinery, robotics, and high-precision motion systems.
This powerful motor delivers 2.31 kW, high torque capability, and fast dynamic response, making it ideal for heavy-duty servo applications.

Rated IP65 for harsh industrial environments and built with premium insulation (MOOG155), it ensures long service life and stable, reliable operation.

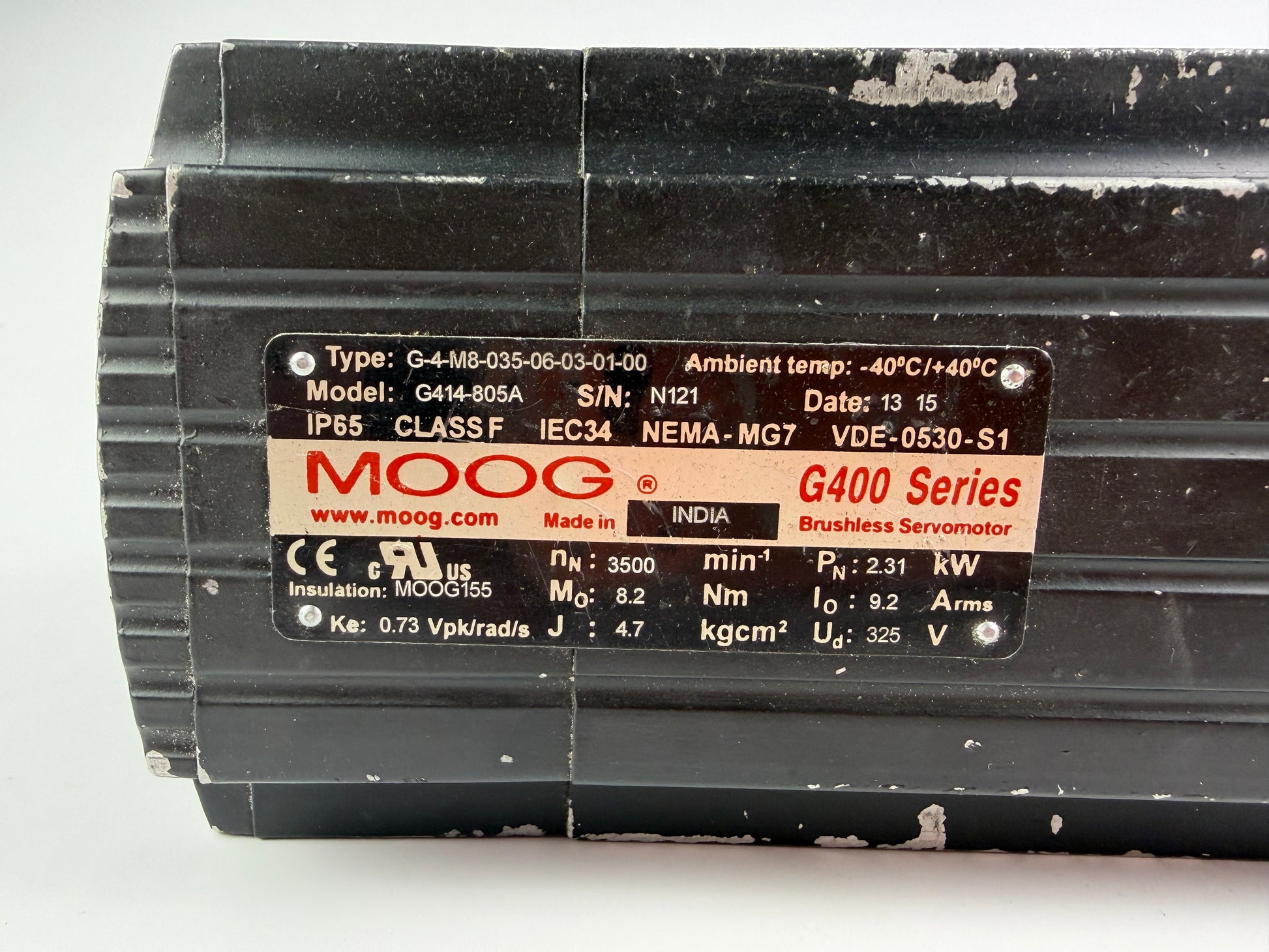

Technical Specifications:

• Model: G414-805A

• Type Code: G-4-M8-035-06-03-01-00

• Series: G400 Series

• Motor Type: Brushless servomotor

• Power (PN): 2.31 kW

• Speed (nN): 3500 min⁻¹

• Torque (MN): 8.0 Nm

• Rated Current (Io): 9.2 Arms

• Rotor Inertia (J): 3.7 kgcm²

• Back EMF Constant (Ke): 0.73 Vpk/rad/s

• Insulation Class: F (MOOG155)

• Protection: IP65

• Voltage (Ud): 325 V

• Ambient Temperature: −40°C to +40°C

• Country: India (MOOG manufacturing)

Item condition: Used, in perfect working condition.
