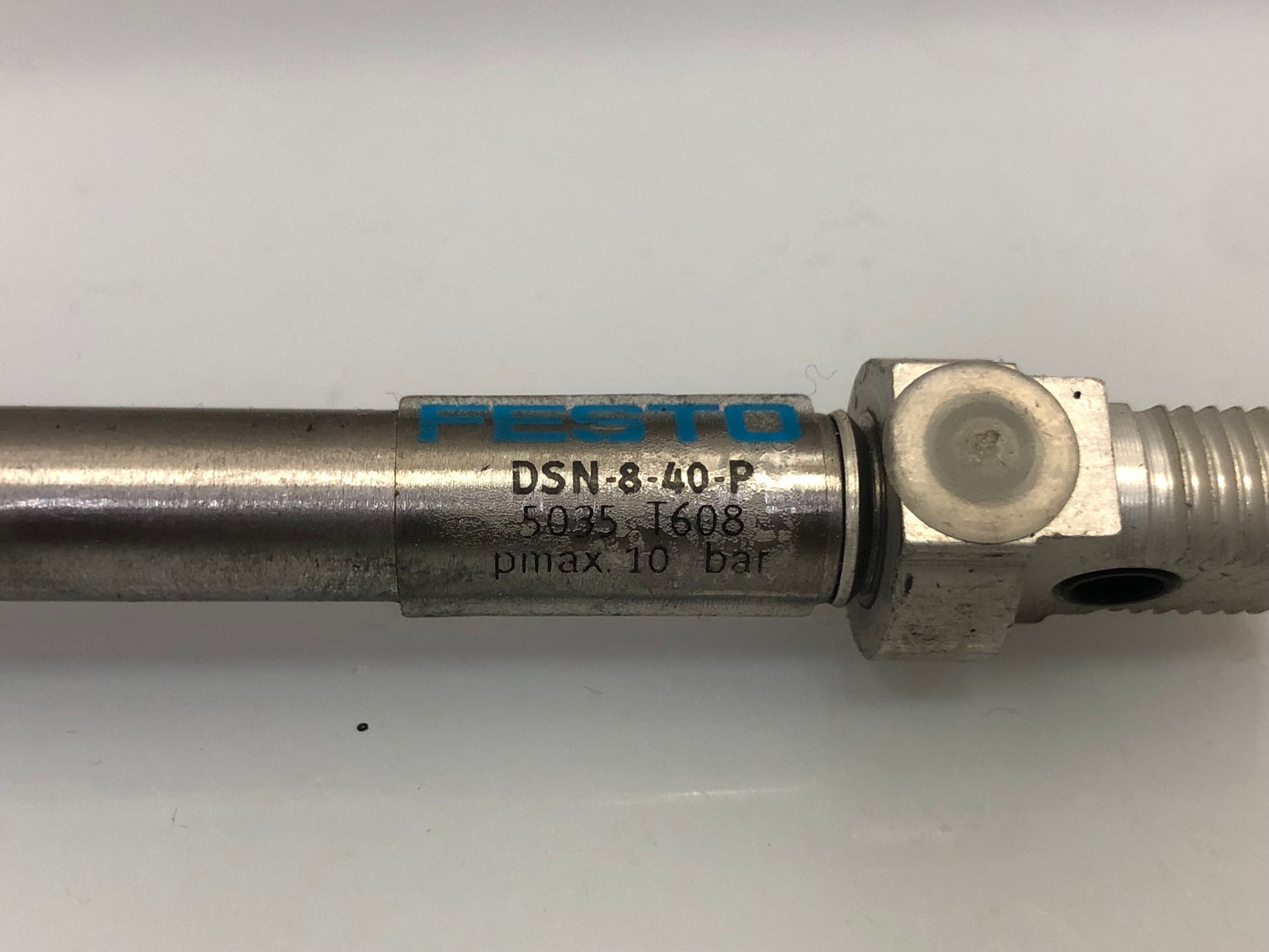

1x Festo DSN-8-40-P Pneumatic Cylinder 8mm Bore 40mm Stroke – 5035

The Festo DSN-8-40-P is a compact round-body pneumatic cylinder designed in accordance with ISO 6432 standards. With an 8 mm bore and 40 mm stroke, it is ideal for precise linear actuation in tight spaces. This double-acting cylinder is suitable for lightweight automation tasks and small mechanical systems.

Technical Specifications:

• Model: DSN-8-40-P

• Part Number: 5035

• Bore Size: 8 mm

• Stroke Length: 40 mm

• Cylinder Type: Round body, ISO 6432 standard

• Action: Double acting

• Piston Rod: Single-ended

• Cushioning: Fixed elastic end-position cushioning

• Body Material: Stainless steel

• Rod Material: Stainless steel

• Operating Pressure: Up to 10 bar

• Medium: Filtered compressed air (lubricated or unlubricated)

• Mounting Options: Nose thread or via optional accessories

• Manufacturer: Festo

Item condition: New, in perfect working condition.
