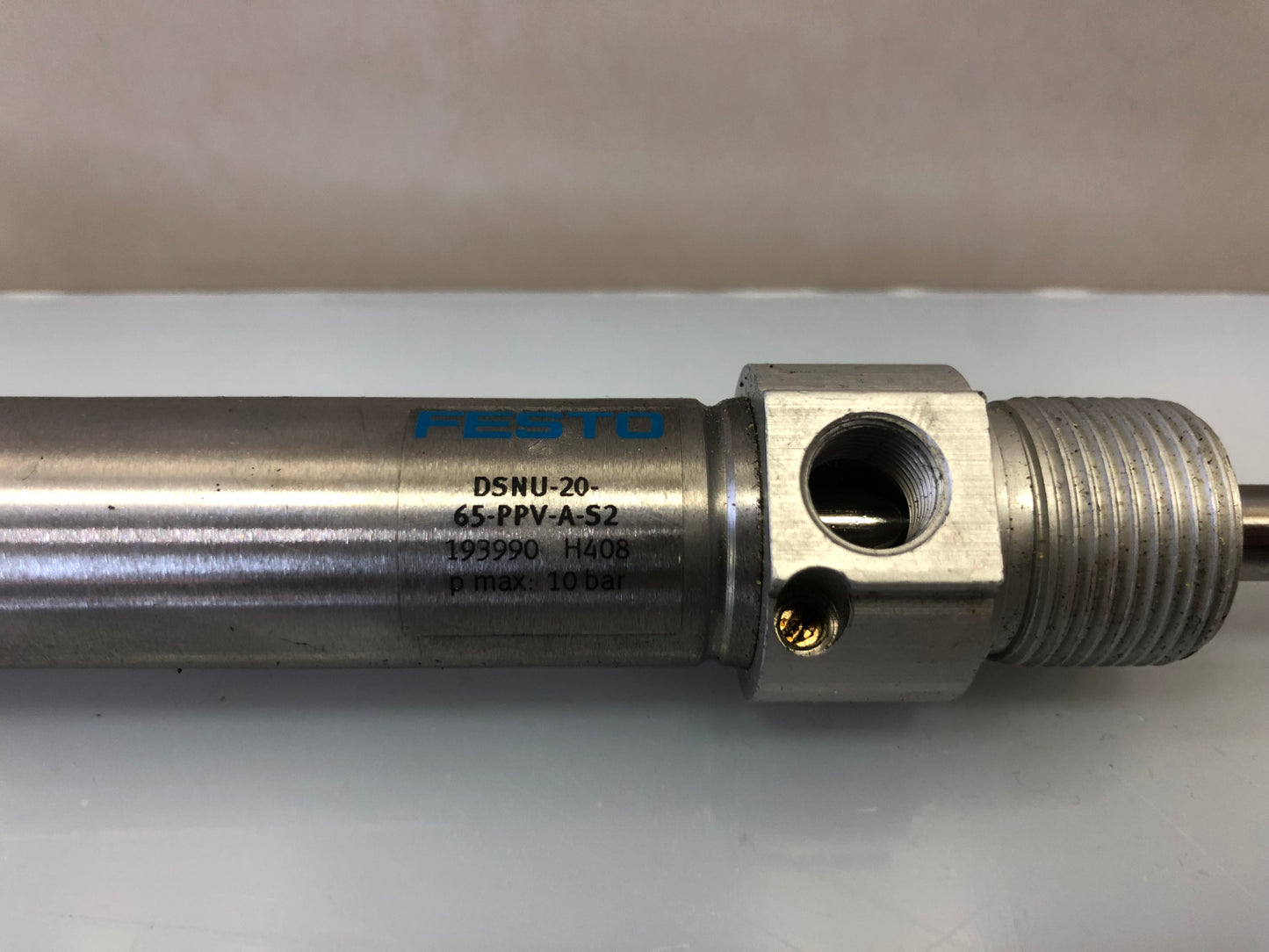

Festo DSNU-20-65-PPV-A-S2 193990 Pneumatic Cylinder 20mm Bore 65mm Stroke

The Festo DSNU-20-65-PPV-A-S2 is a high-quality round stainless-steel pneumatic cylinder from the DSNU series, designed for long service life and reliable performance. With a 20 mm bore and 65 mm stroke, it is suitable for a wide range of linear motion applications in industrial automation.

Technical Specifications:

• Model: DSNU-20-65-PPV-A-S2

• Part Number: 193990

• Series: DSNU

• Bore Size: 20 mm

• Stroke Length: 65 mm

• Design: ISO 6432 standard round cylinder

• Cushioning: Adjustable pneumatic cushioning (PPV)

• Piston Rod: Double-ended, with S2 variant (magnet for position sensing)

• Body Material: Stainless steel

• Rod Material: Stainless steel

• Max Operating Pressure: 10 bar

• Medium: Filtered, lubricated or non-lubricated compressed air

• Manufacturer: Festo

Item condition: Used, in perfect working condition.
