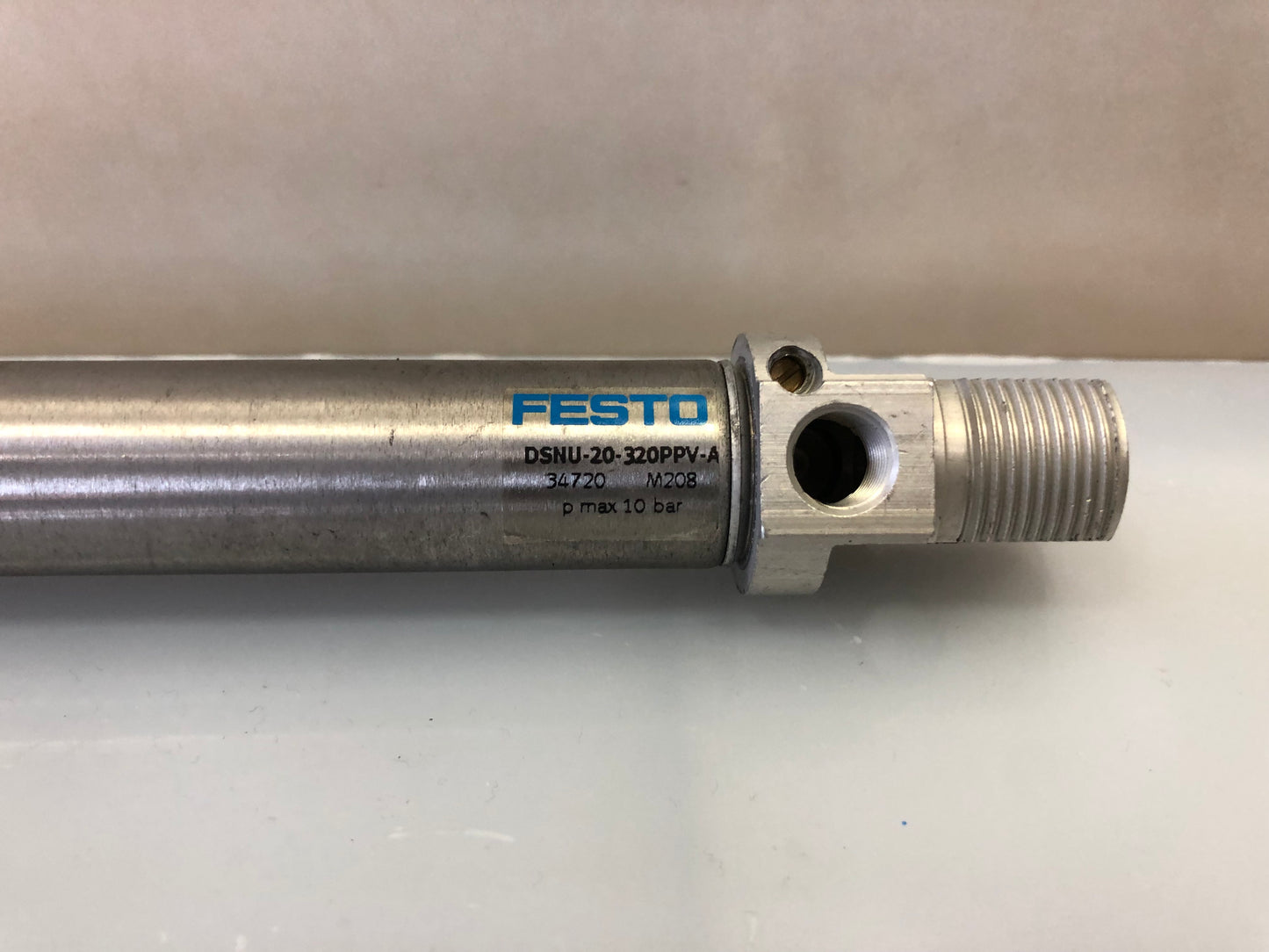

Festo DSNU-20-320-PPV-A 34720 Pneumatic Cylinder 20mm Bore 320mm Stroke

The Festo DSNU-20-320-PPV-A is a robust and durable pneumatic cylinder built to ISO 6432 standards. With a 20 mm bore and an extended 320 mm stroke, this cylinder is ideal for applications requiring long linear travel in a compact, stainless steel design. Its adjustable end-position cushioning ensures smooth operation and long service life.

Technical Specifications:

• Model: DSNU-20-320-PPV-A

• Part Number: 34720

• Series: DSNU

• Bore Size: 20 mm

• Stroke Length: 320 mm

• Design Standard: ISO 6432

• Cushioning: Adjustable pneumatic cushioning (PPV)

• Piston Rod: Single-ended

• Body Material: Stainless steel

• Rod Material: Stainless steel

• Operating Pressure: Up to 10 bar

• Medium: Filtered compressed air, with or without lubrication

• Mounting Type: Variable (accessories available)

• Manufacturer: Festo

Item condition: Used, in perfect working condition.
