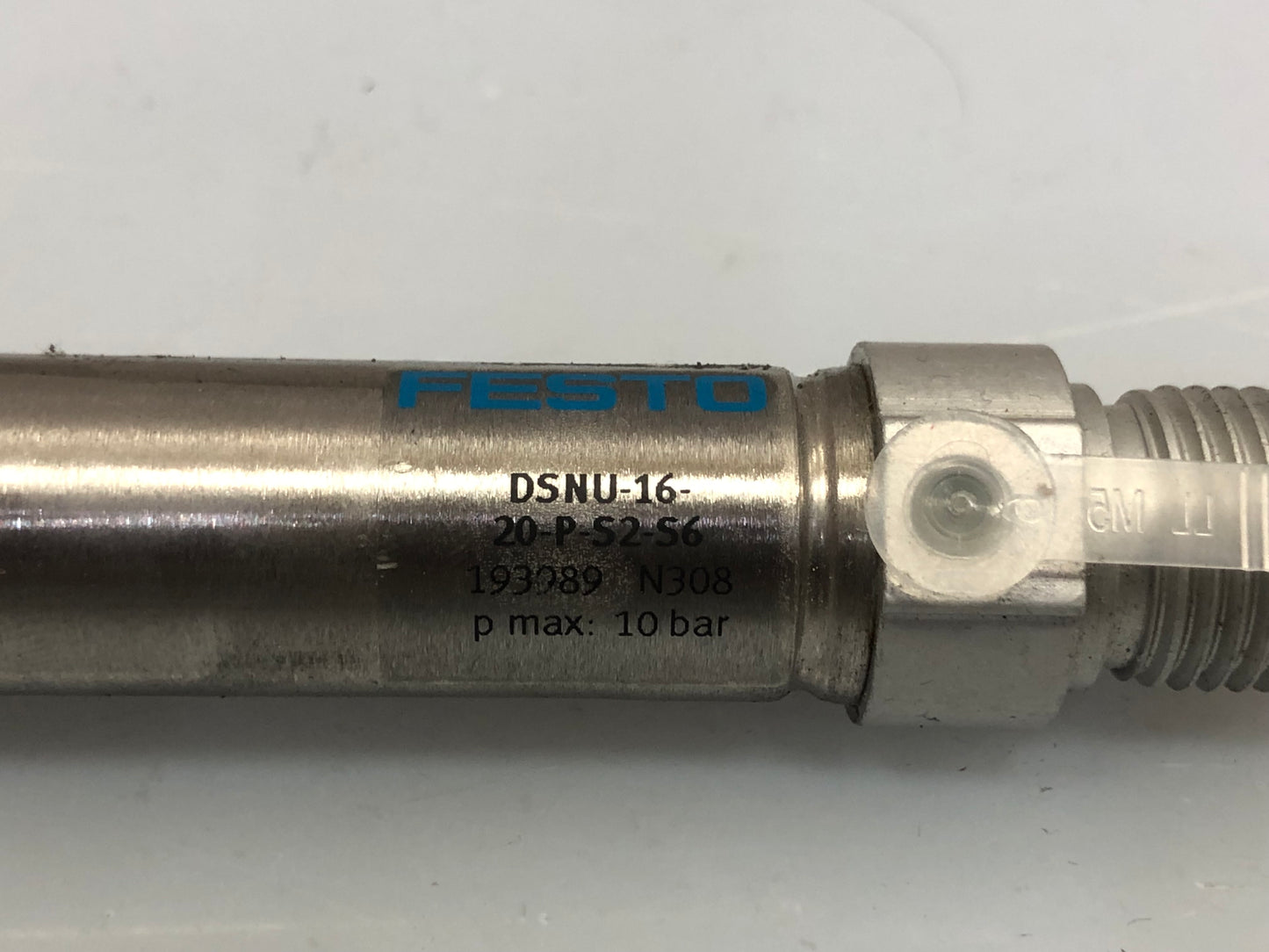

Festo DSNU-16-20-P-S2-S6 Pneumatic Cylinder 16mm Bore 20mm Stroke – 193989

The Festo DSNU-16-20-P-S2-S6 is a high-quality ISO 6432-compliant round-body pneumatic cylinder. It features a 16 mm bore and 20 mm stroke, a magnetic piston (S2) for position sensing, and S6 variant corrosion-resistant design, making it suitable for demanding environments such as food processing or wet industrial applications.

Technical Specifications:

• Model: DSNU-16-20-P-S2-S6

• Part Number: 193989

• Bore Size: 16 mm

• Stroke Length: 20 mm

• Cylinder Type: Round cylinder, ISO 6432 standard

• Action: Double acting

• Piston Variant: S2 – Magnetic piston for sensor compatibility

• Special Variant: S6 – Corrosion-resistant design (stainless steel and seals suitable for aggressive environments)

• Piston Rod: Double-ended, stainless steel

• Cushioning: Elastic end-position cushioning

• Body Material: Stainless steel

• Operating Pressure: Up to 10 bar

• Medium: Filtered compressed air, lubricated or unlubricated

• Mounting Options: Nose or rear thread, compatible with Festo accessories

• Manufacturer: Festo

Item condition: New, in perfect working condition.
