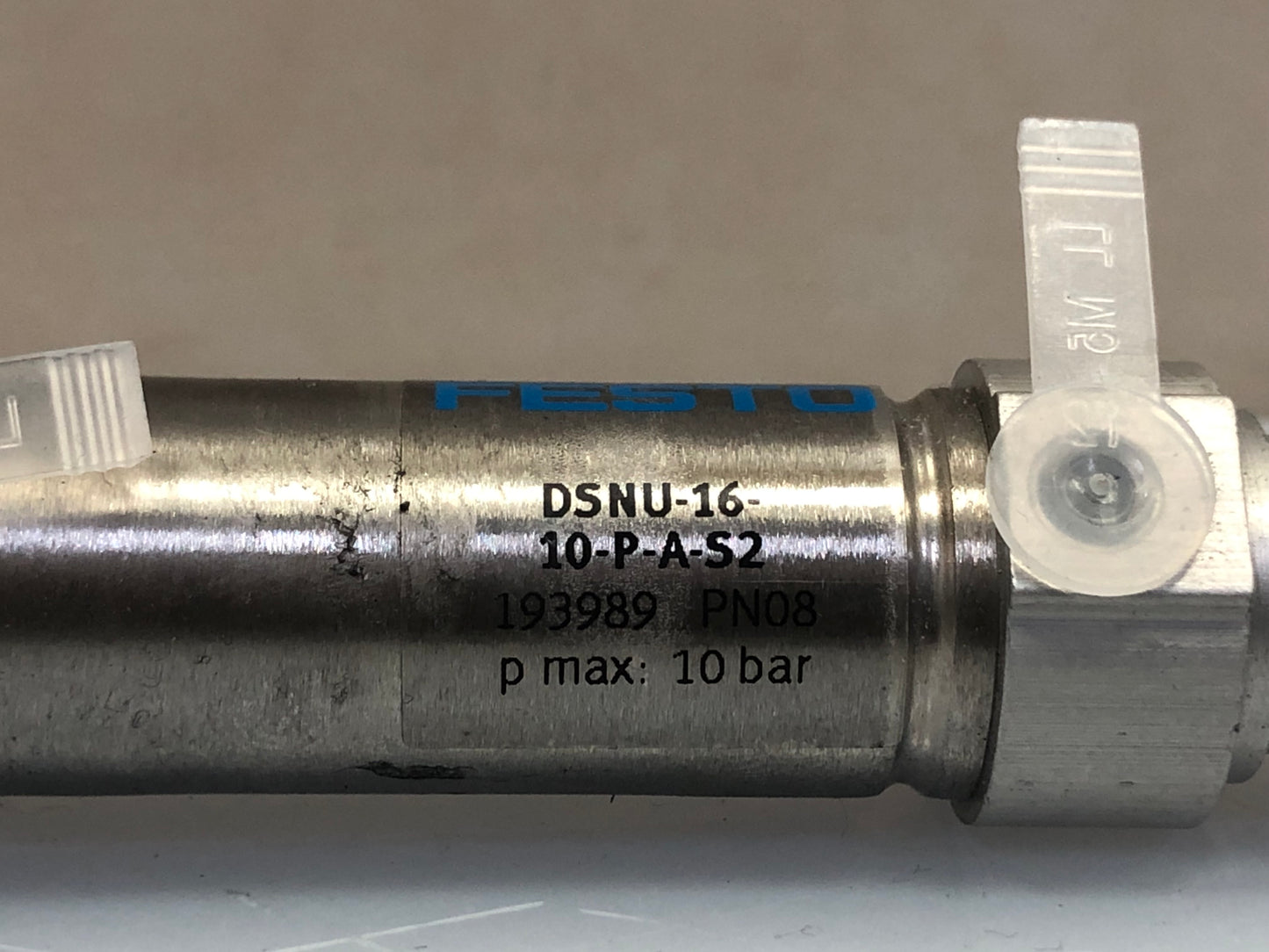

Festo DSNU-16-10-P-A-S2 Pneumatic Cylinder 16mm Bore 10mm Stroke – 193989

The Festo DSNU-16-10-P-A-S2 is a high-quality ISO 6432 round-body pneumatic cylinder with a 16 mm bore and 10 mm stroke. This compact, double-acting cylinder features an S2 magnetic piston, making it suitable for use with position sensors in automation systems that require precise, short linear movement.

Technical Specifications:

• Model: DSNU-16-10-P-A-S2

• Part Number: 193989

• Bore Size: 16 mm

• Stroke Length: 10 mm

• Cylinder Type: Round body, ISO 6432 standard

• Action: Double acting

• Piston Variant: S2 – Magnetic piston for proximity sensing

• Piston Rod: Double-ended, stainless steel

• Cushioning: Elastic end-position cushioning

• Body Material: Stainless steel

• Rod Material: Stainless steel

• Operating Pressure: Up to 10 bar

• Medium: Filtered compressed air, lubricated or unlubricated

• Mounting Options: Nose thread, rear thread, or with Festo accessories

• Manufacturer: Festo

Item condition: New, in perfect working condition.
