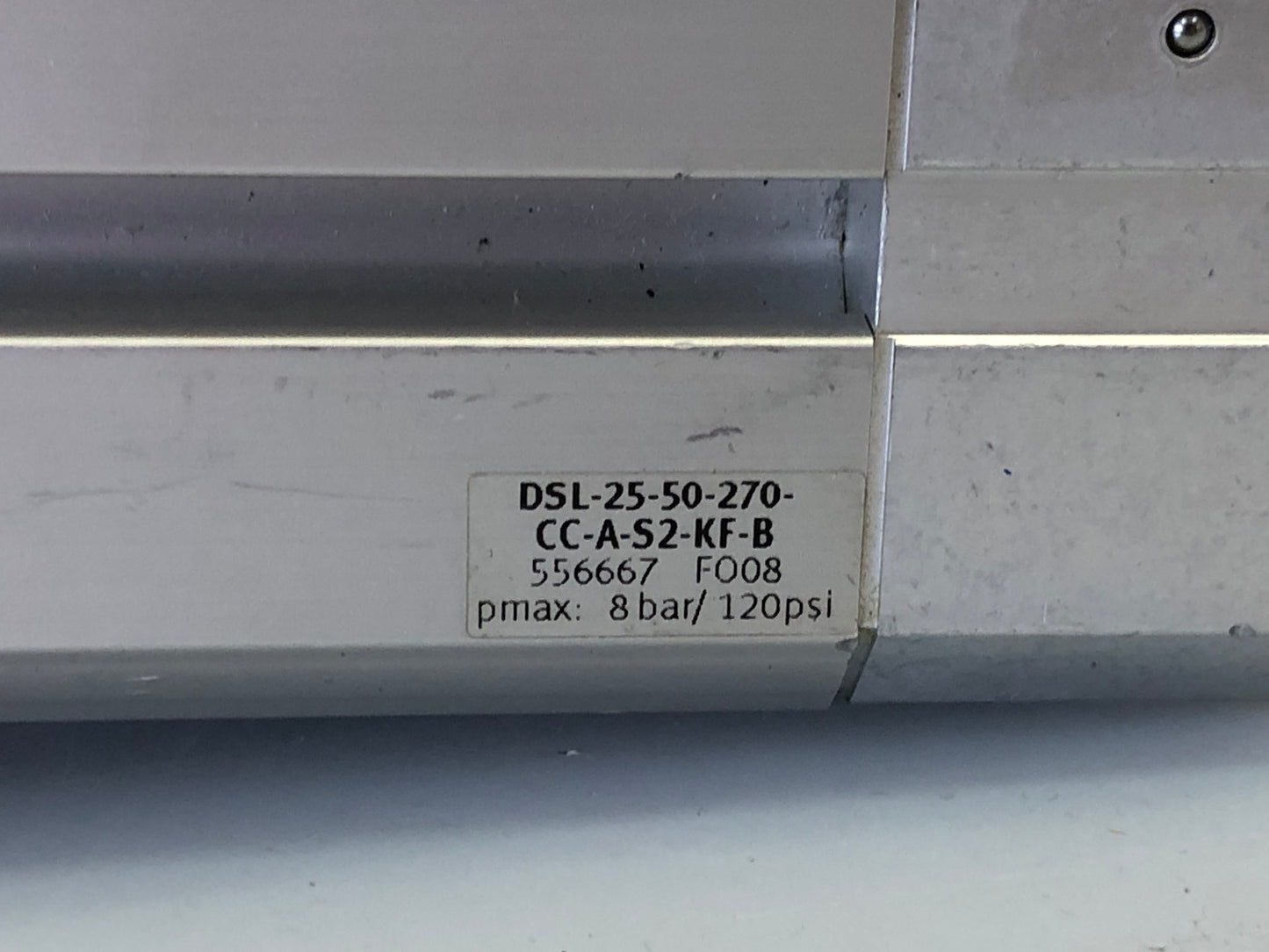

FESTO DSL‑25‑50‑270‑CC‑A‑S2‑KF‑B Swivel‑Linear Unit – 25 mm Bore, 50 mm Stroke

Up for sale is a FESTO DSL‑25‑50‑270‑CC‑A‑S2‑KF‑B swivel and linear motion unit, part number 556667. This compact double‑acting actuator delivers combined linear and rotary motion, featuring a 25 mm bore, 50 mm stroke, and up to 246° of adjustable swivel. Designed for high-repeatability motion control in compact automation and positioning applications.

Technical Specifications

• Model / Part No.: DSL‑25‑50‑270‑CC‑A‑S2‑KF‑B (556667)

• Piston Diameter (Bore): 25 mm

• Stroke: 50 mm linear travel

• Swivel Angle: 0° to 246°, adjustment fine by –3° (full range up to 246°)

• Cushioning: Shock absorber at both linear ends + elastic cushioning rings/plates

Item condition: Used, in perfect working condition.
