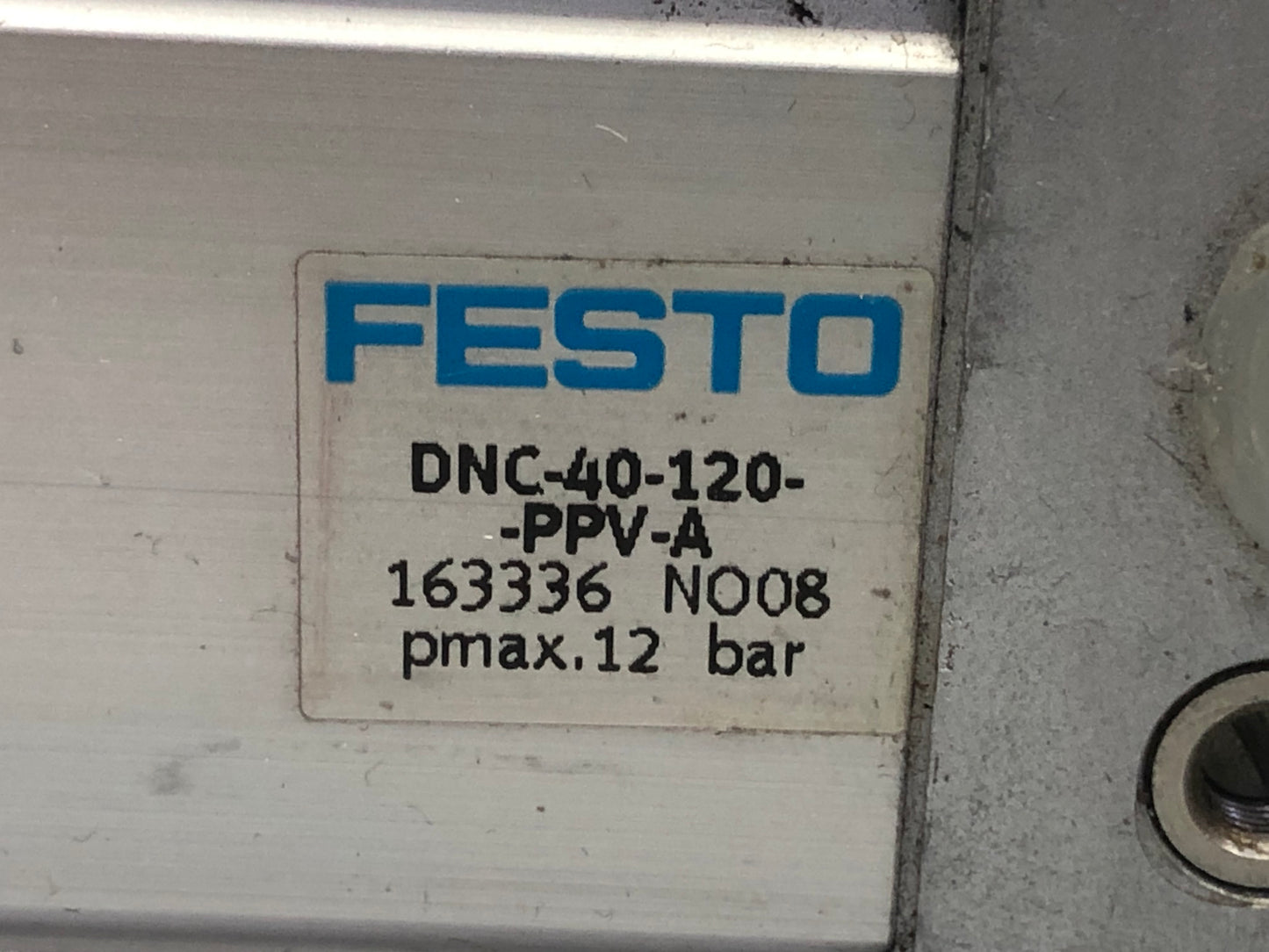

Festo DNC-40-120-PPV-A Pneumatic Cylinder 40mm Bore 120mm Stroke – 163336

The Festo DNC-40-120-PPV-A is a robust ISO 15552 standard pneumatic cylinder designed for demanding industrial automation applications. With a 40 mm bore and 120 mm stroke, it offers powerful linear motion with adjustable cushioning for smooth operation and extended service life.

Technical Specifications:

• Model: DNC-40-120-PPV-A

• Part Number: 163336

• Series: DNC

• Bore Size: 40 mm

• Stroke Length: 120 mm

• Standard: ISO 15552 (formerly ISO 6431)

• Action: Double acting

• Cushioning: Adjustable pneumatic cushioning (PPV) at both ends

• Piston Rod: Single-ended, male thread

• Body Material: Anodized aluminum profile

• Rod Material: Stainless steel

• Operating Pressure: Up to 12 bar

• Medium: Filtered, lubricated or unlubricated compressed air

• Mounting Options: Various (flange, foot, trunnion, etc. – not included)

• Manufacturer: Festo

Item condition: Never used, but have few markings from storage
