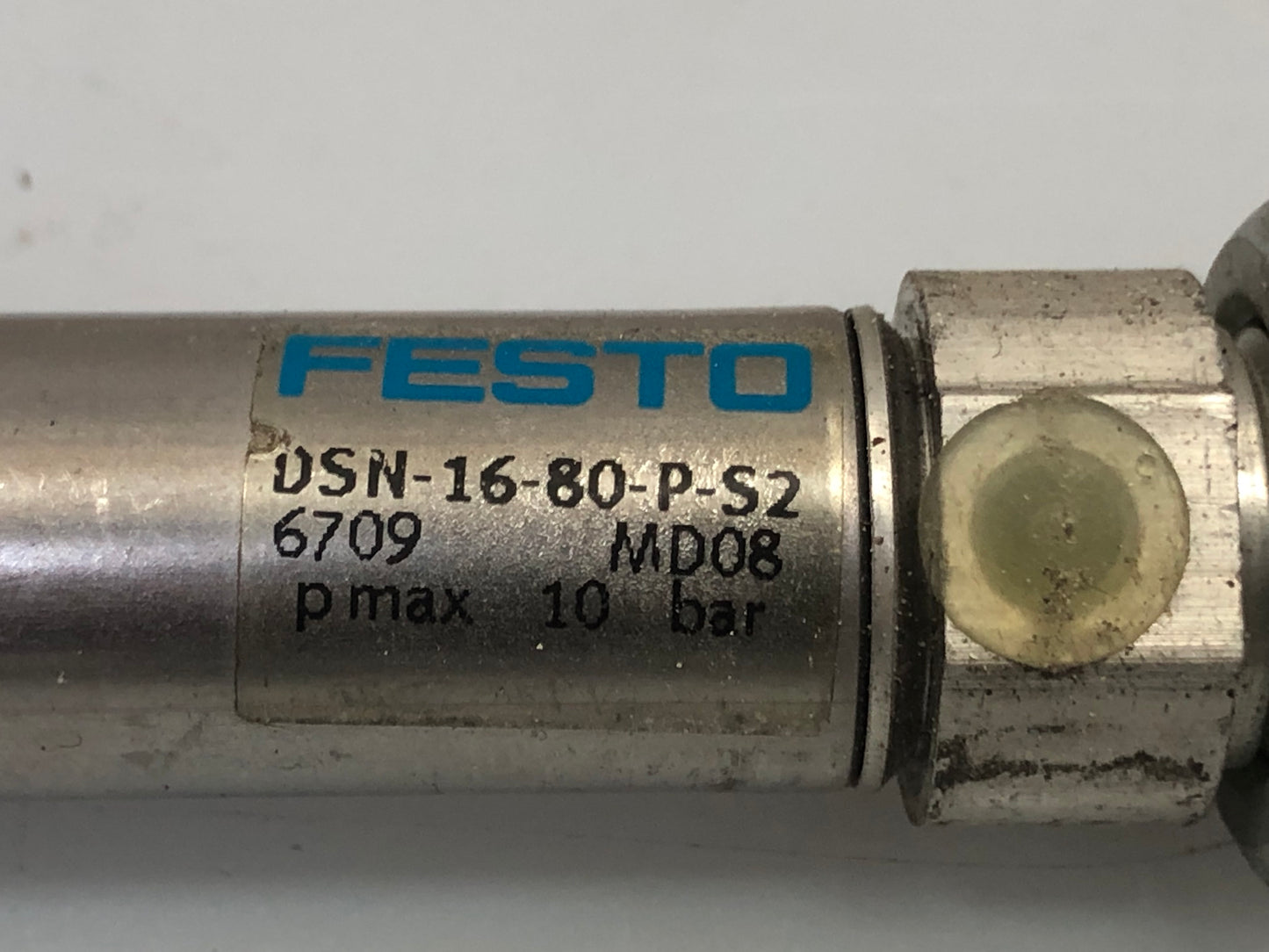

Festo DSN-16-80-P-S2 Pneumatic Cylinder 16mm Bore 80mm Stroke – 6709

The Festo DSN-16-80-P-S2 is a compact round-body pneumatic cylinder designed according to ISO 6432 standards. With a 16 mm bore, 80 mm stroke, and integrated magnetic piston (S2 variant), it is ideal for applications that require precise linear motion and position sensing.

Technical Specifications:

• Model: DSN-16-80-P-S2

• Part Number: 6709

• Bore Size: 16 mm

• Stroke Length: 80 mm

• Cylinder Type: Round body standard cylinder

• Standard: ISO 6432

• Action: Double acting

• Piston Rod: Double-ended

• Piston Variant: S2 – magnetic piston for use with proximity sensors

• Cushioning: Fixed elastic end-position cushioning

• Body Material: Stainless steel

• Rod Material: Stainless steel

• Operating Pressure: Up to 10 bar

• Medium: Filtered compressed air, lubricated or unlubricated

• Mounting Options: Threaded nose or via accessories

• Manufacturer: Festo

Item condition: New, in perfect working condition.
