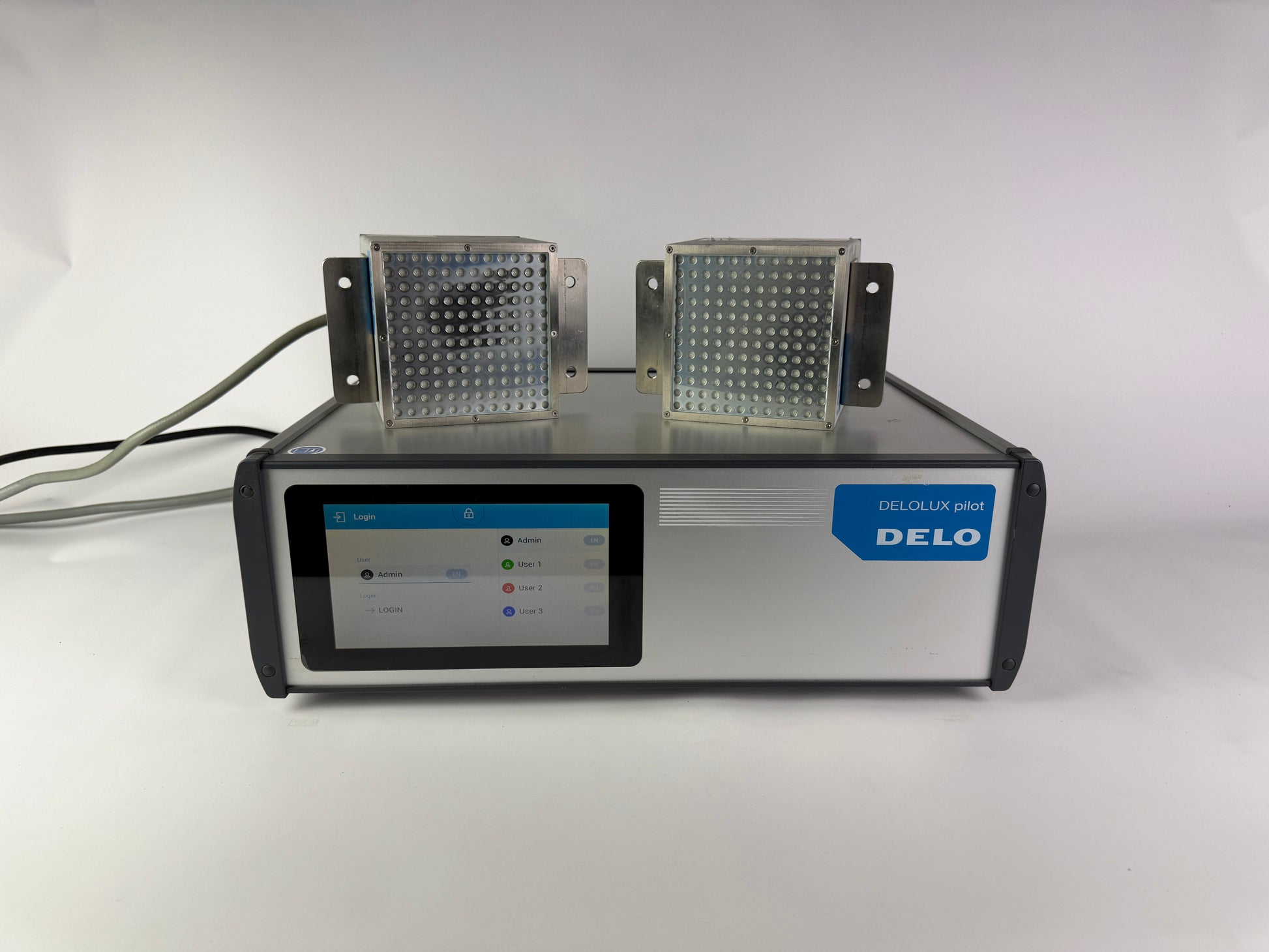

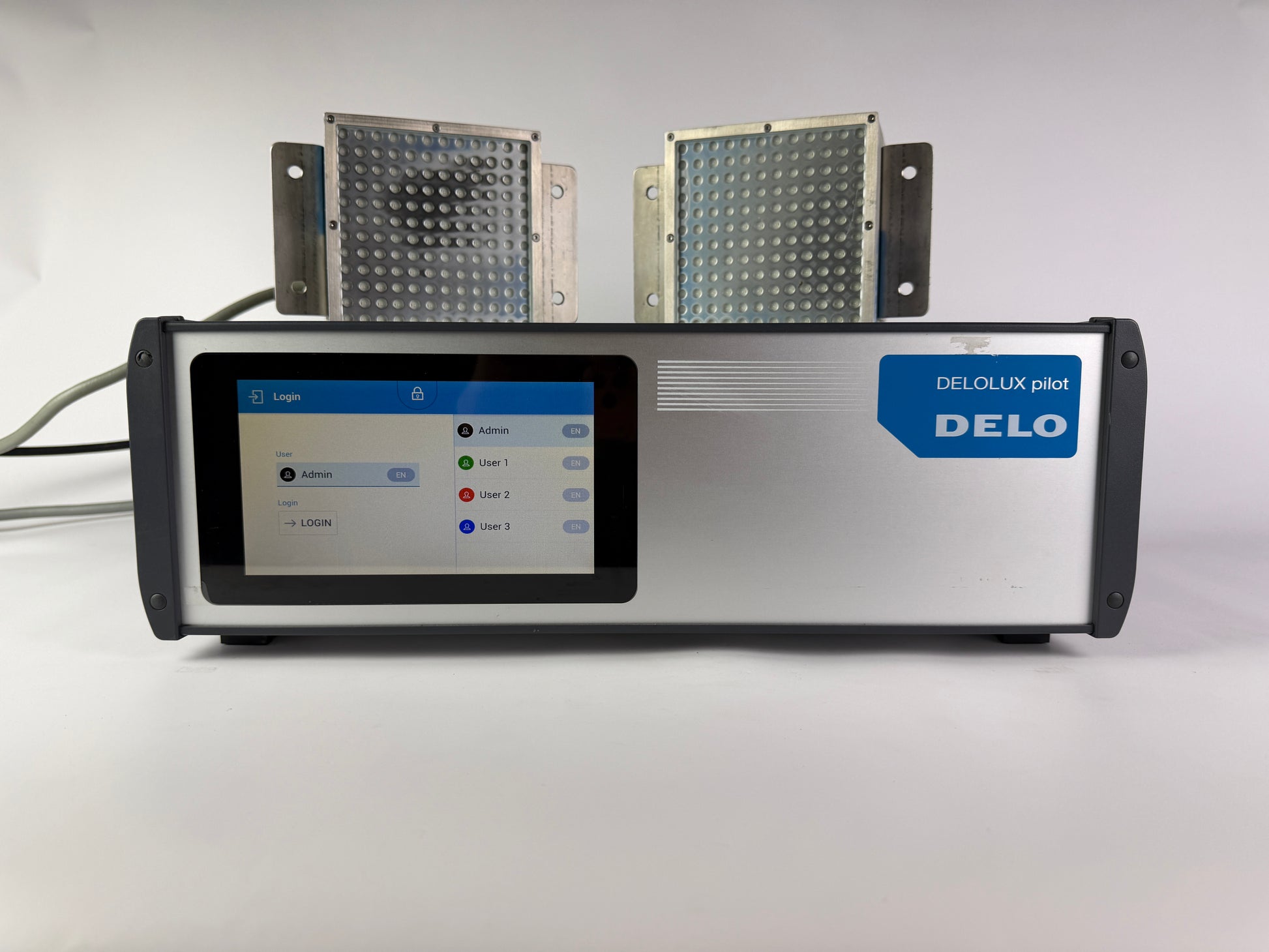

DELO DELOLUX pilot A4T Control Unit + 2× DELOLUX 20/400 A2 LED Heads – Complete UV Light Curing System

This listing includes a fully operational, complete DELO DELOLUX UV curing system, consisting of:

• DELOLUX pilot A4T control & power supply unit

• 2× DELOLUX 20/400 A2 LED area lamps (400 nm)

• Mounting brackets, integrated cooling, and all original high-quality cabling

DELO is one of the world’s leading manufacturers of industrial UV curing systems used in electronics, optics, medical device assembly, precision bonding, and automated production lines.

This system provides extremely high-intensity, uniform UV illumination over a large area, perfect for high-speed adhesive curing and automated processes requiring absolute stability and repeatability.

Included Components

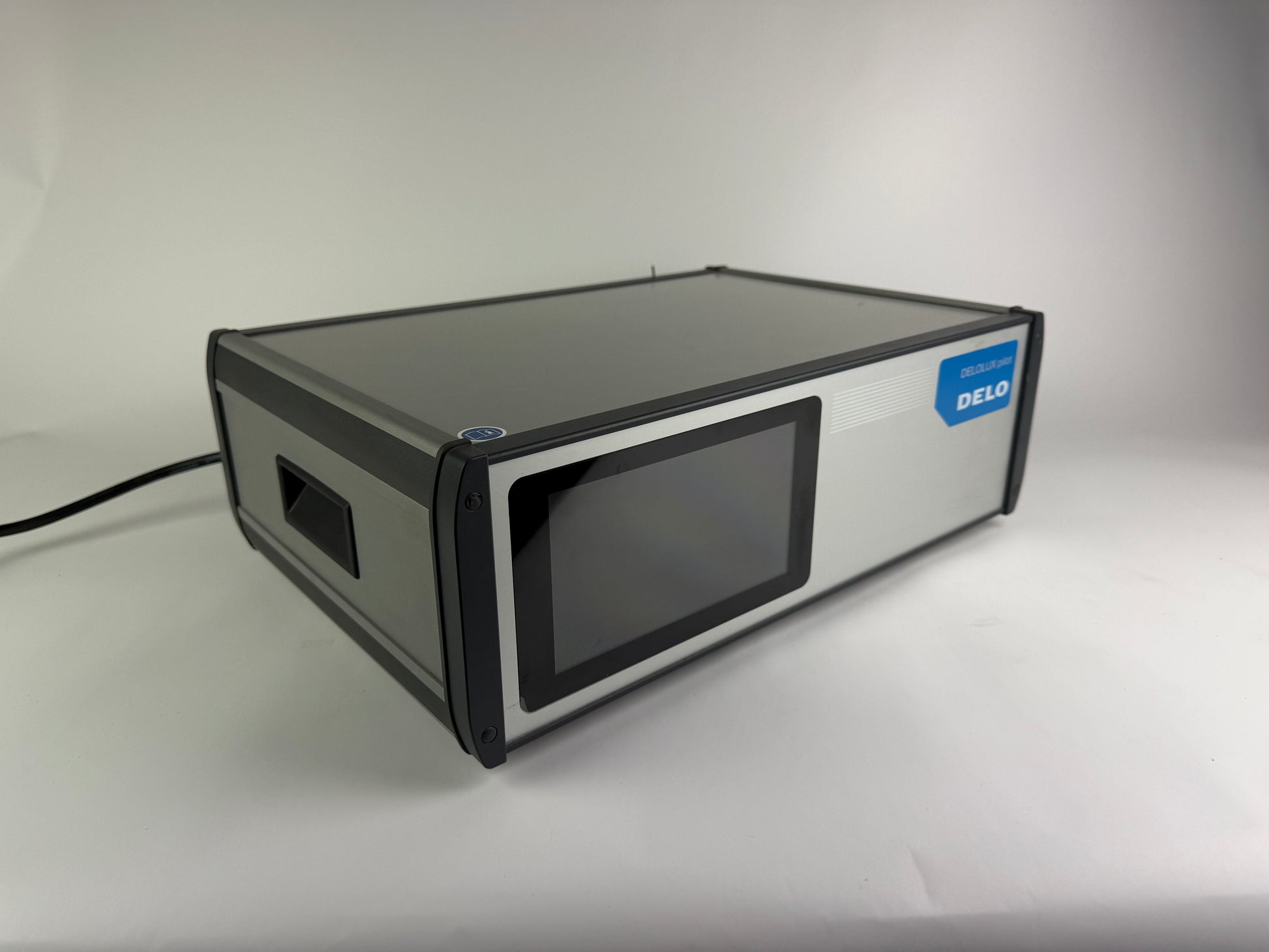

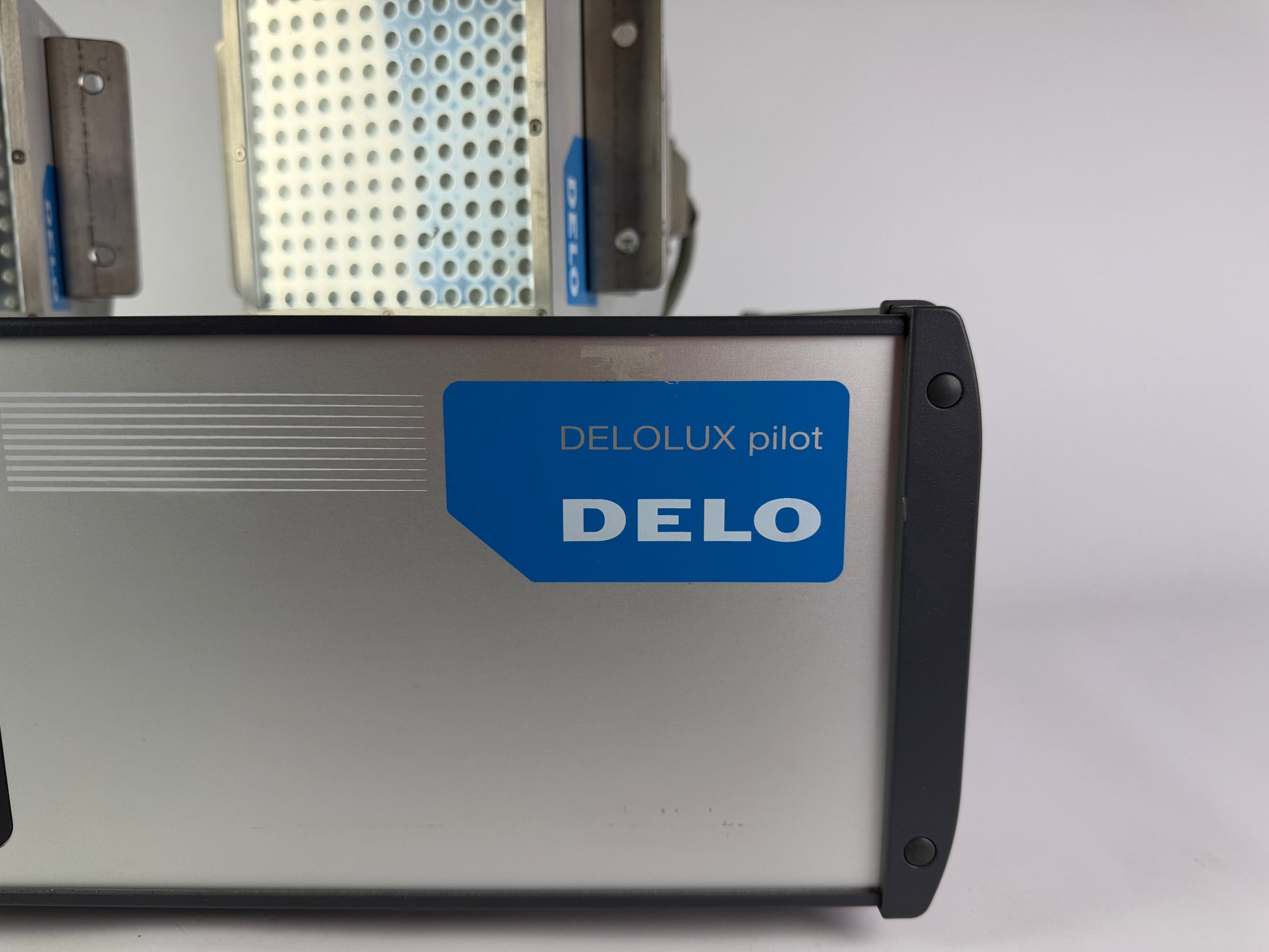

1) DELOLUX pilot A4T Control & Power Unit

• Model: A4T

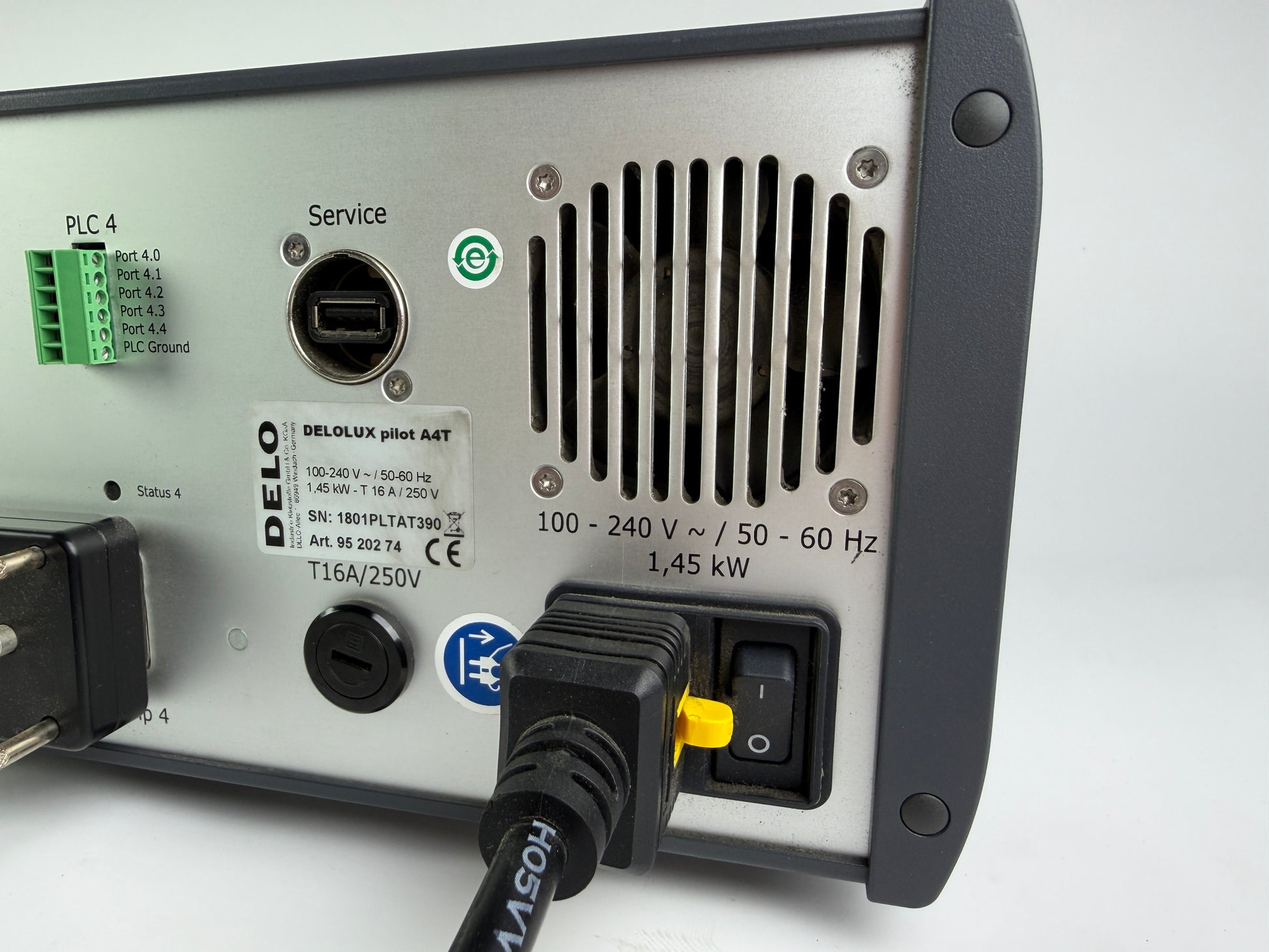

• Input Voltage: 100–240 V AC, 50/60 Hz

• Power Consumption: 1.45 kW

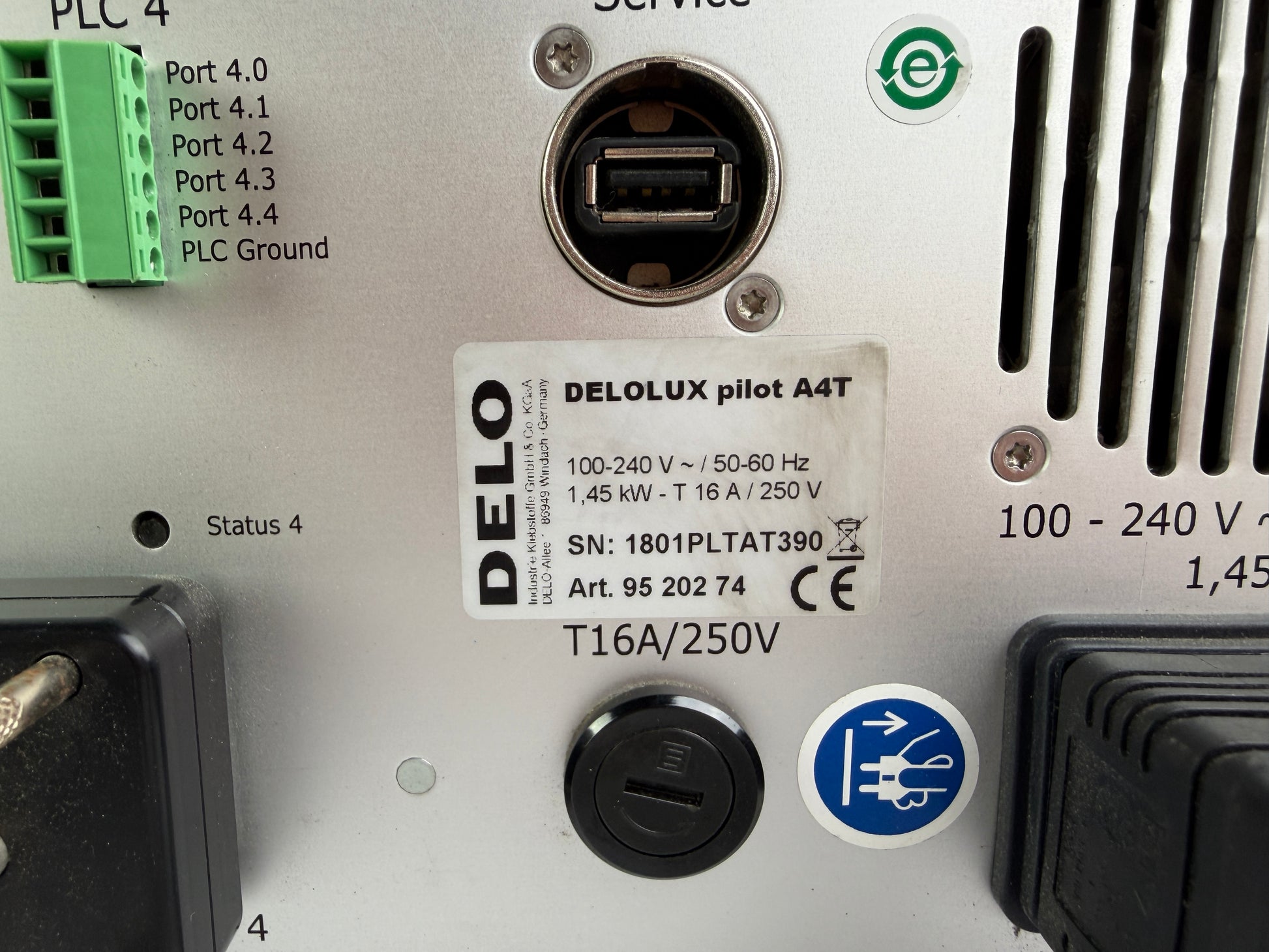

• Fuse: T16 A / 250 V

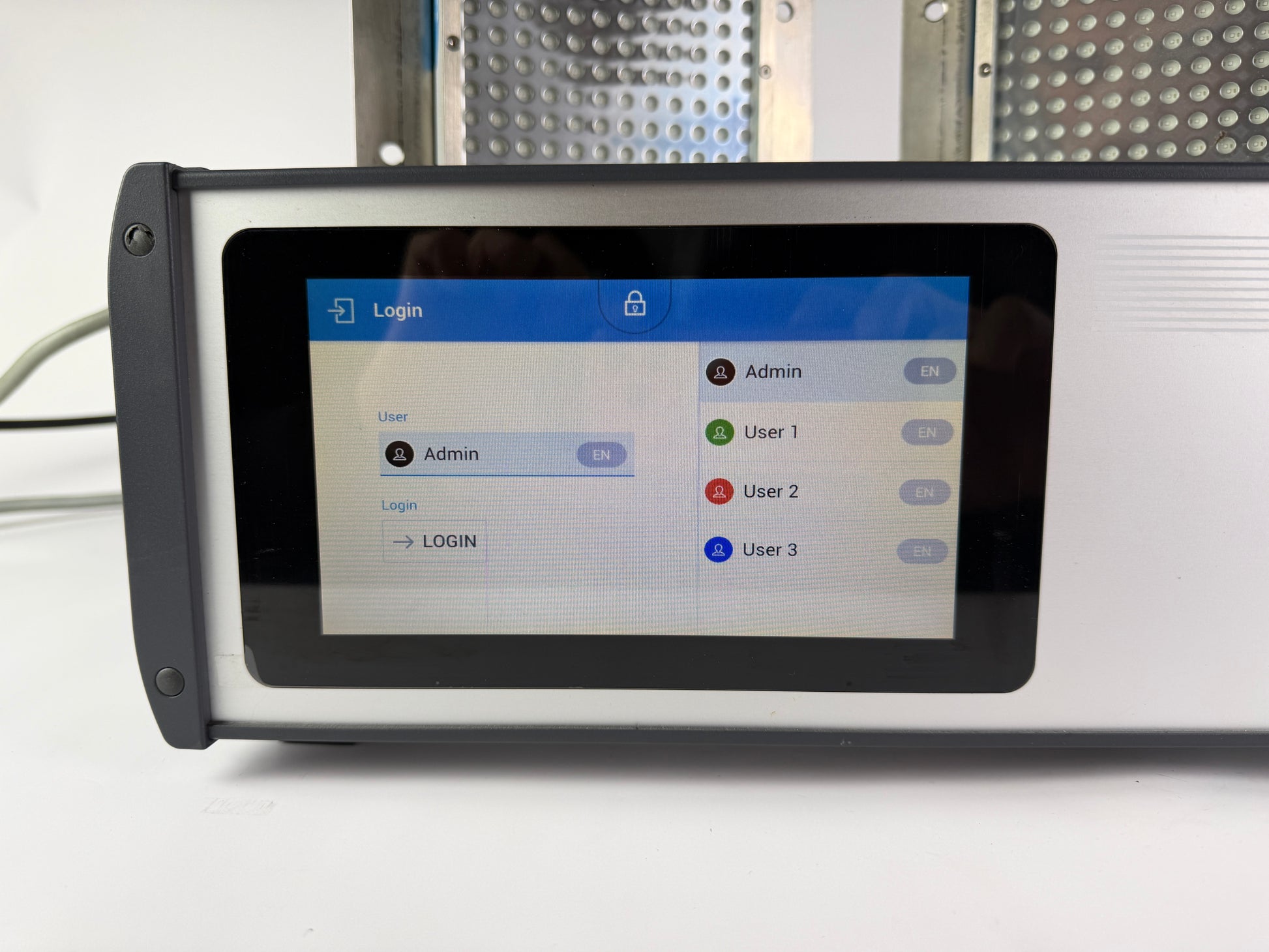

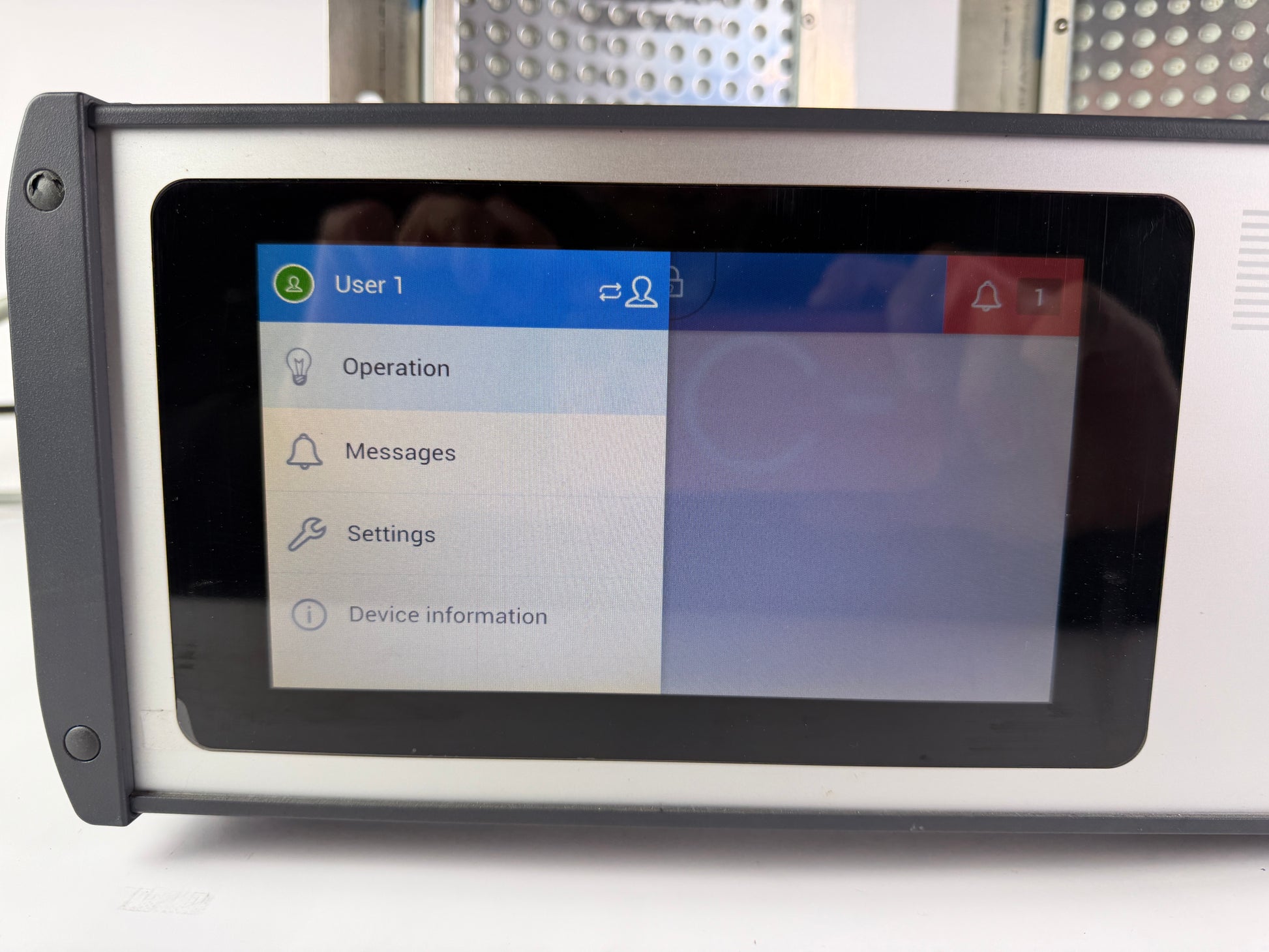

• User Interface: Large touchscreen display (Login, Admin/User profiles)

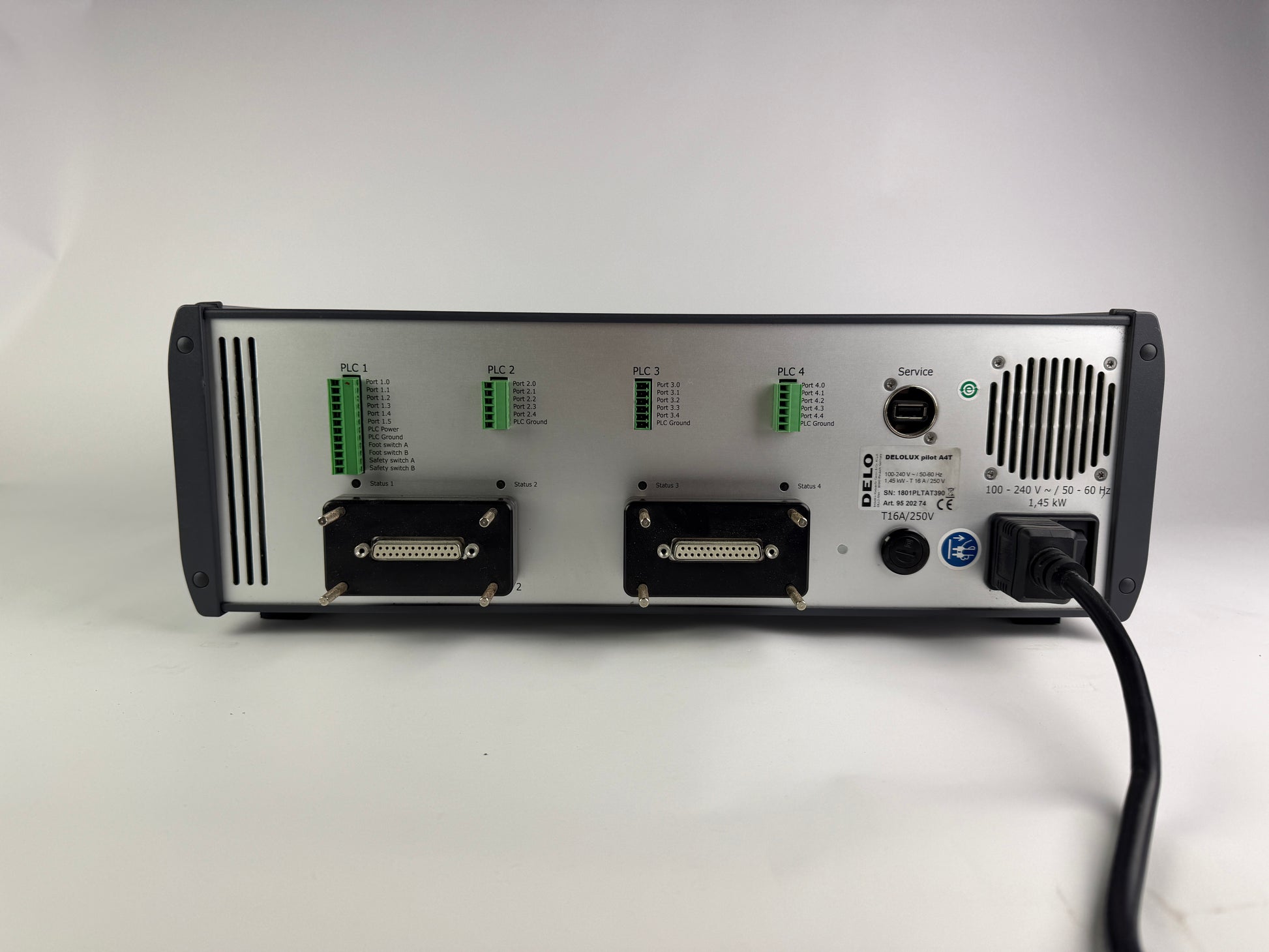

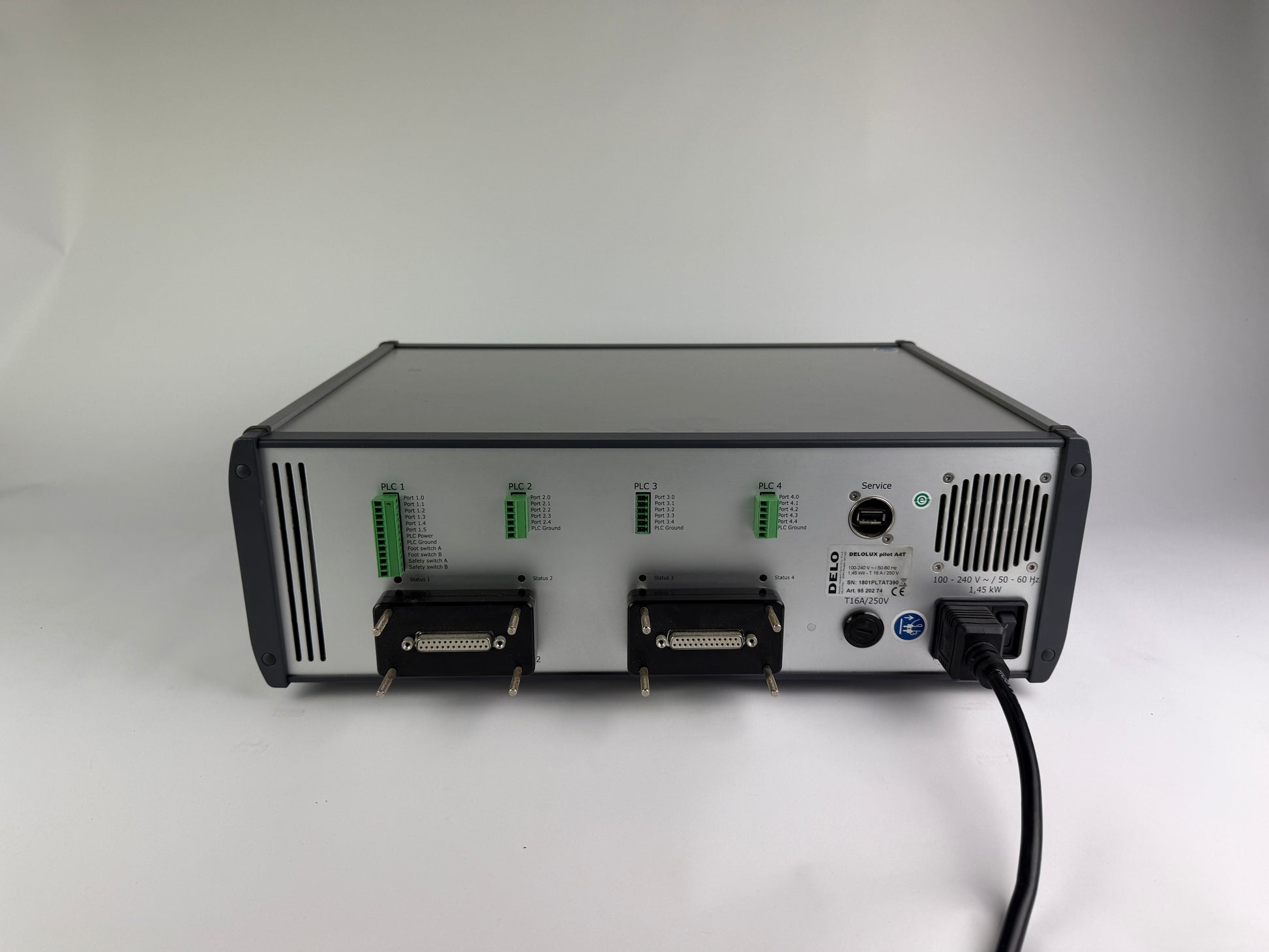

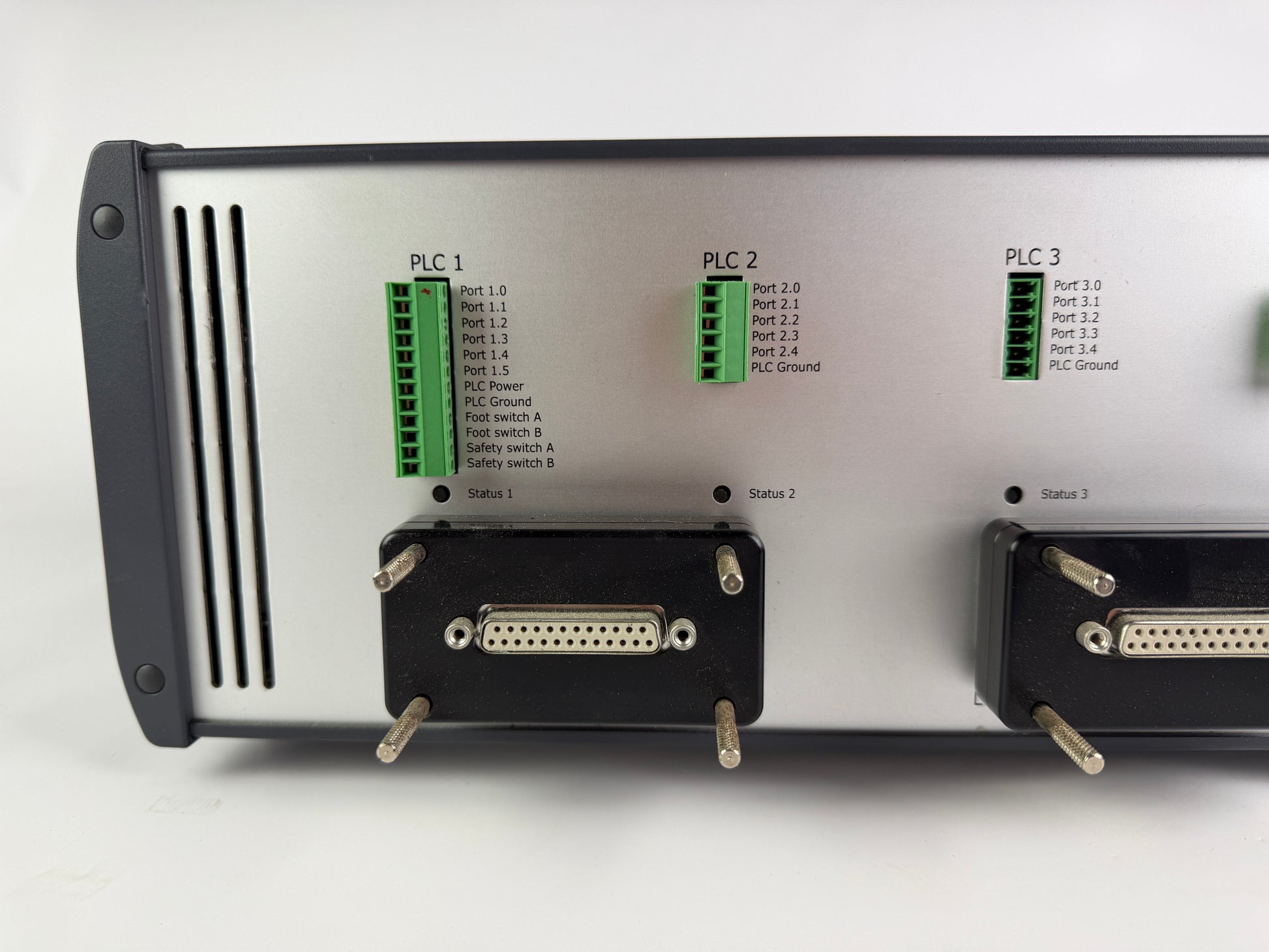

• Control Ports: PLC 1–4 (digital control inputs)

• Function: Central control, monitoring, and power delivery for LED heads

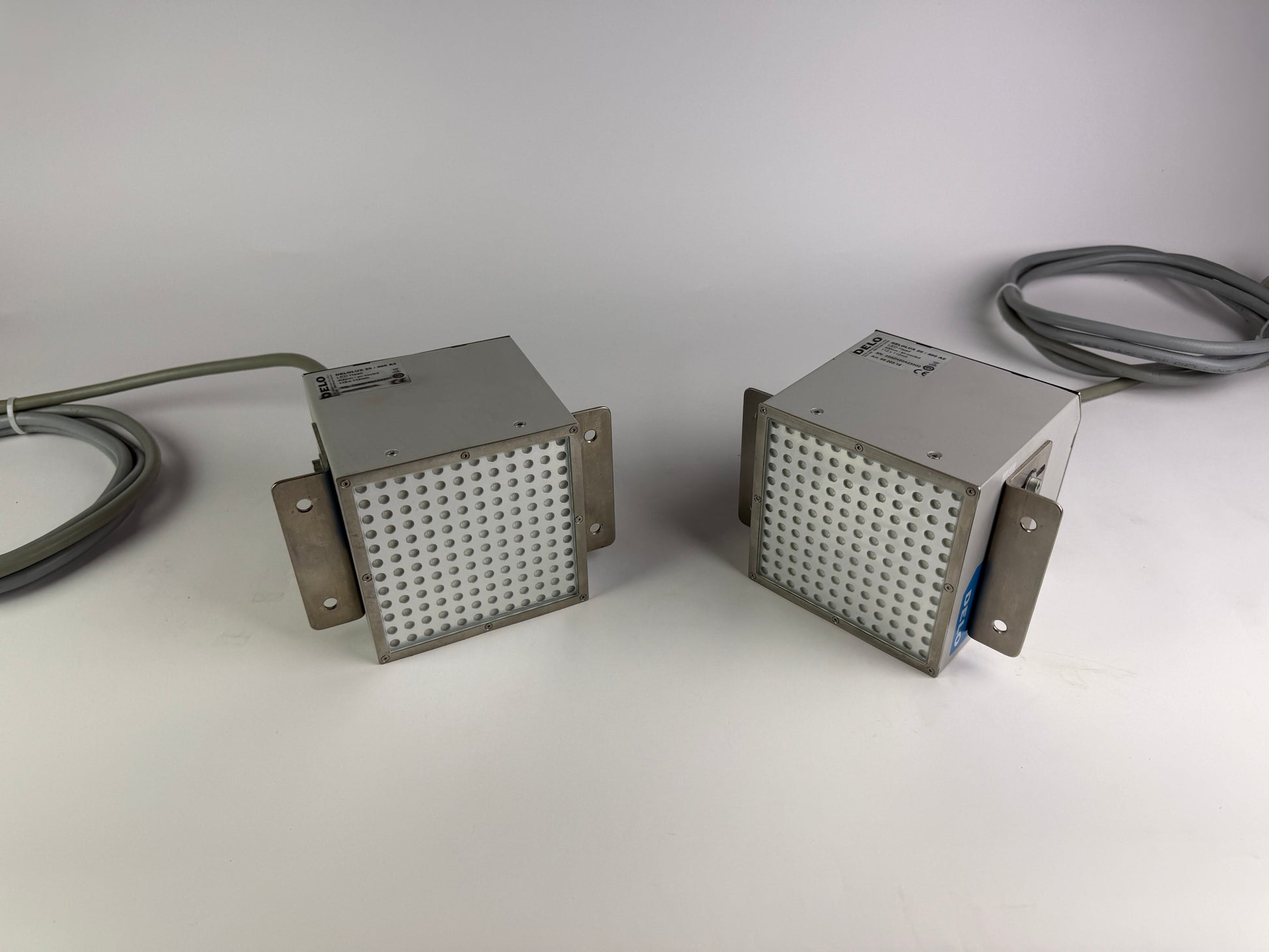

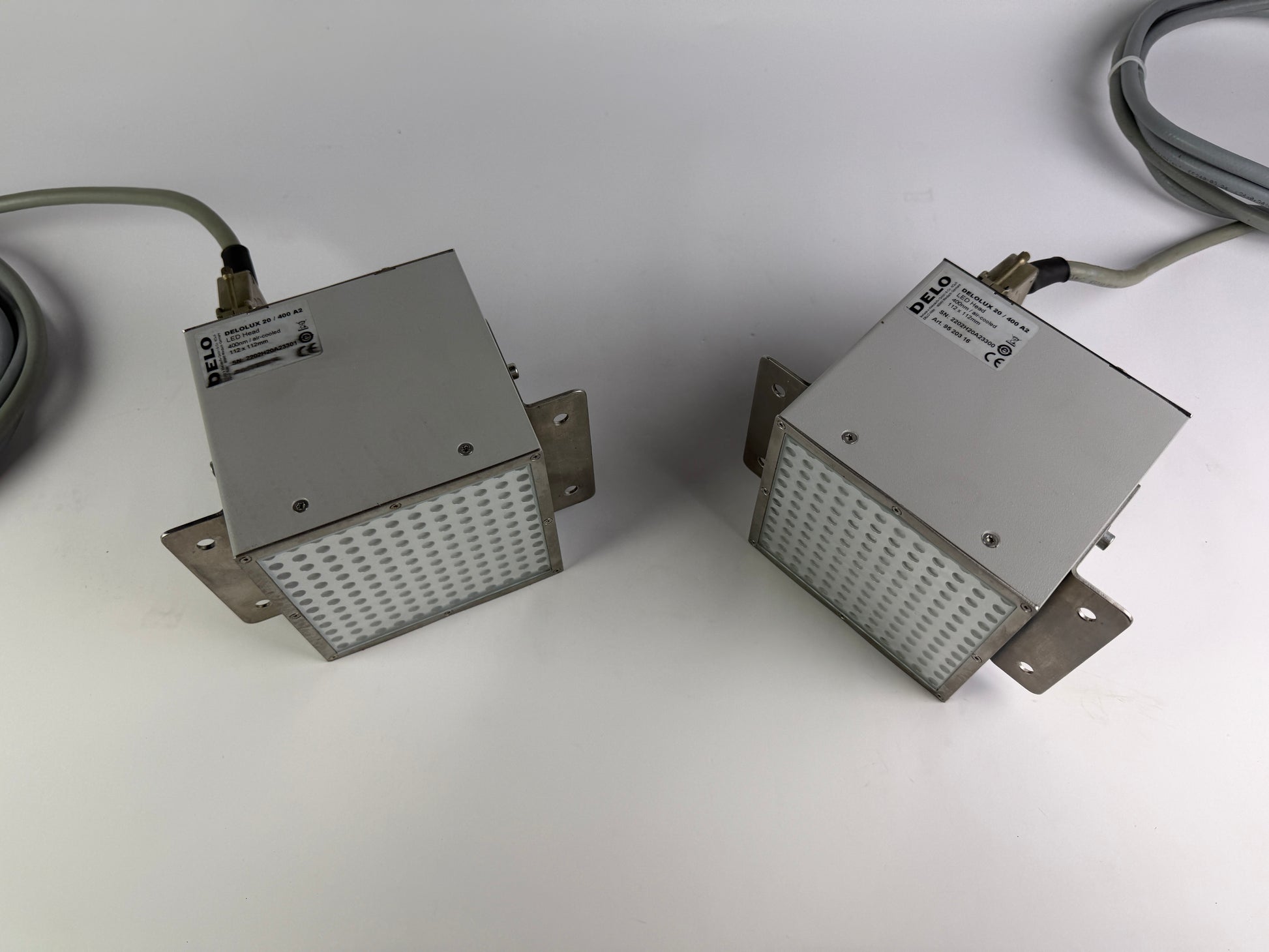

2) Two LED Heads – DELOLUX 20/400 A2

• Wavelength: 400 nm

• Cooling: Air-cooled

• Illumination Area: 112 × 112 mm

• Perfect uniformity for industrial curing processes

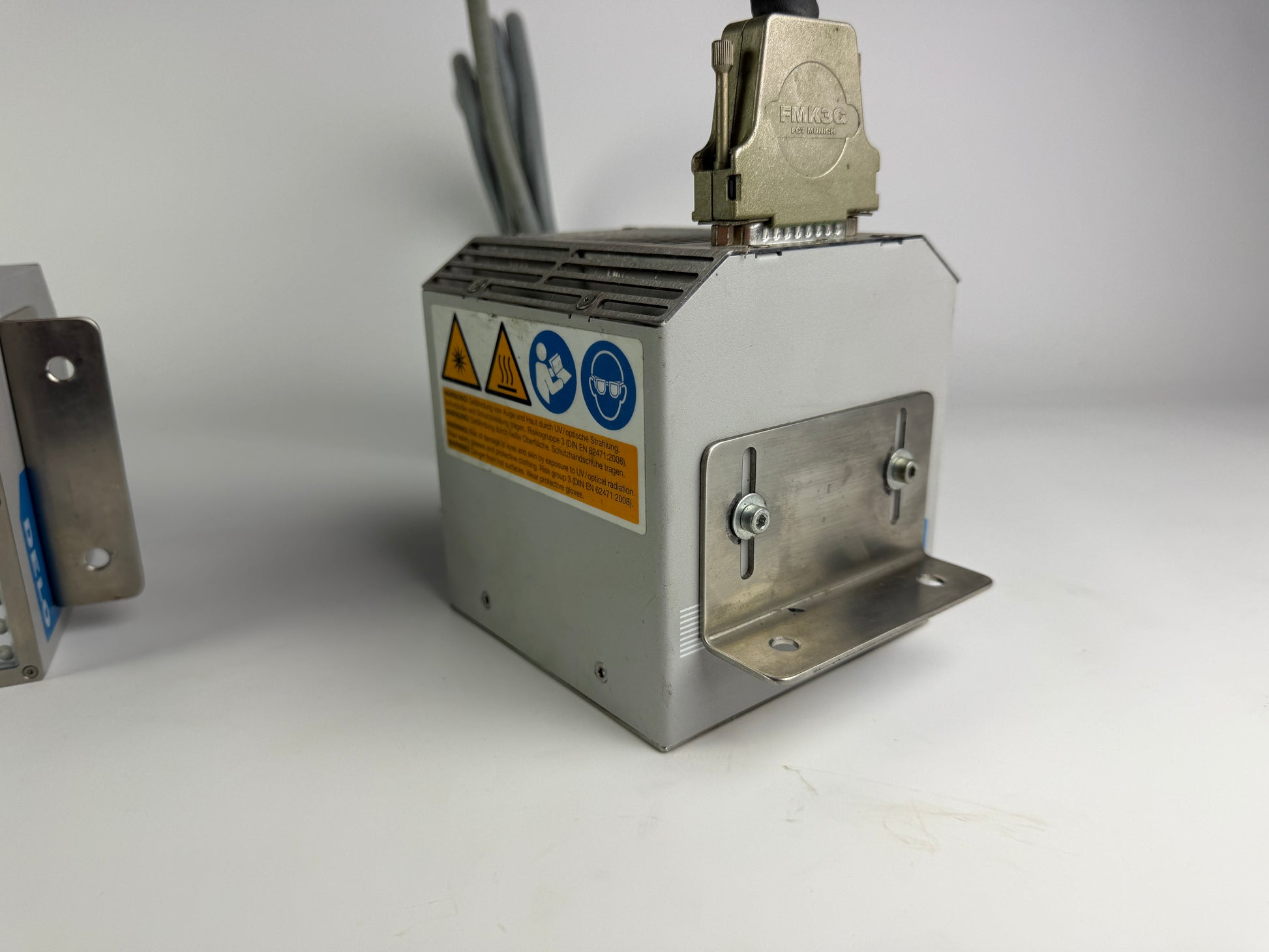

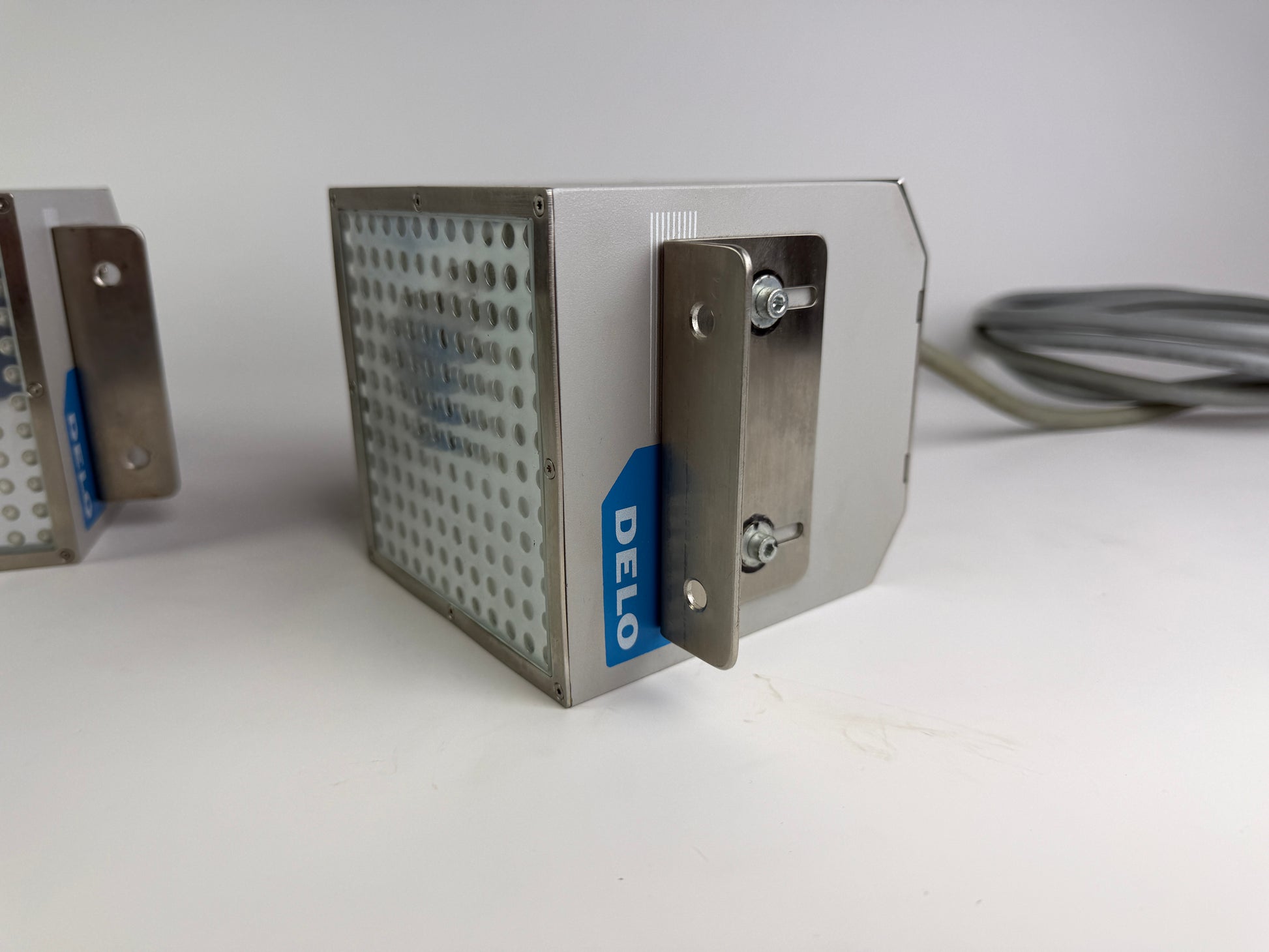

• Both heads include mounting brackets + 280 cm cable each

Technical Specifications

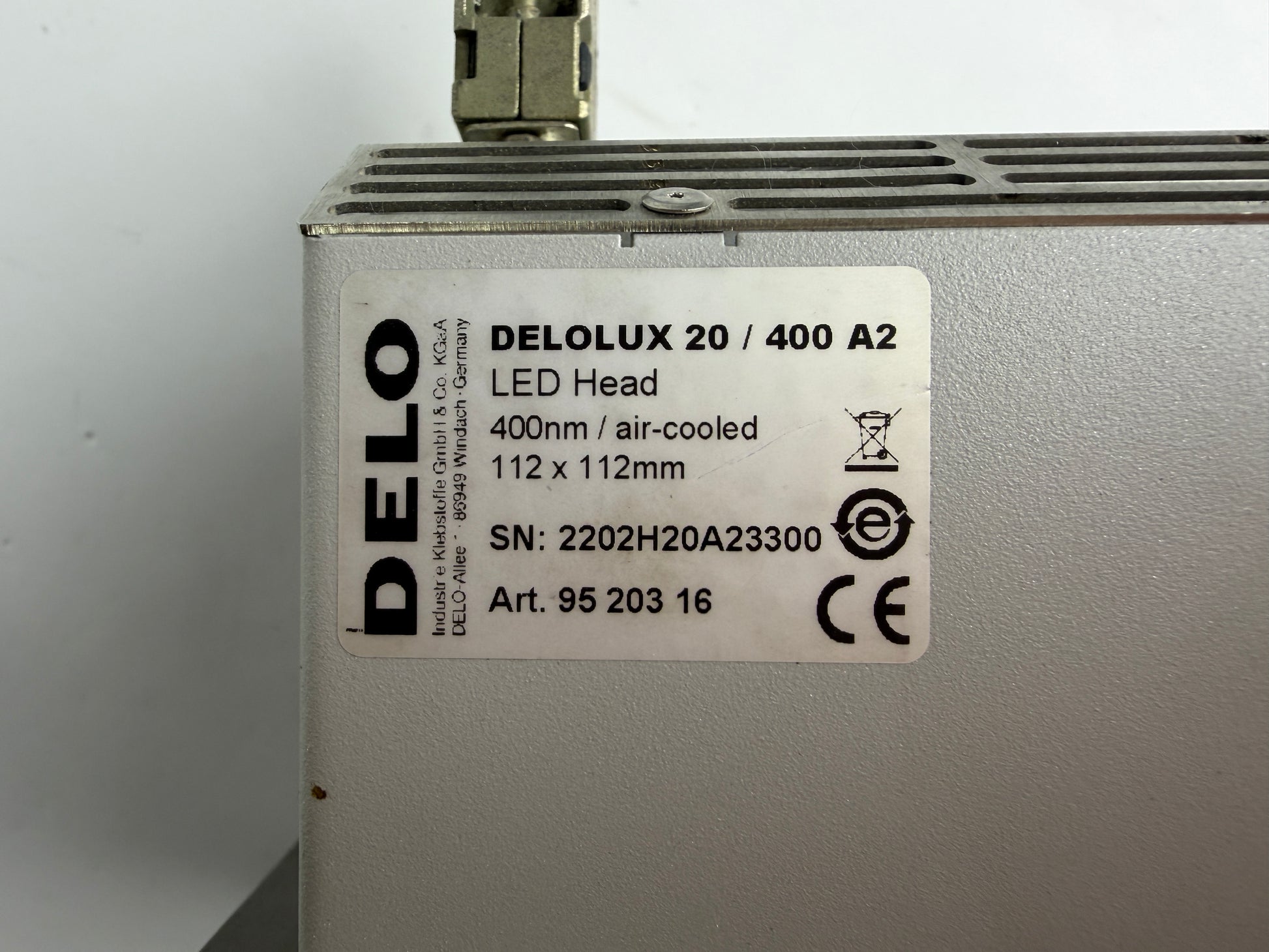

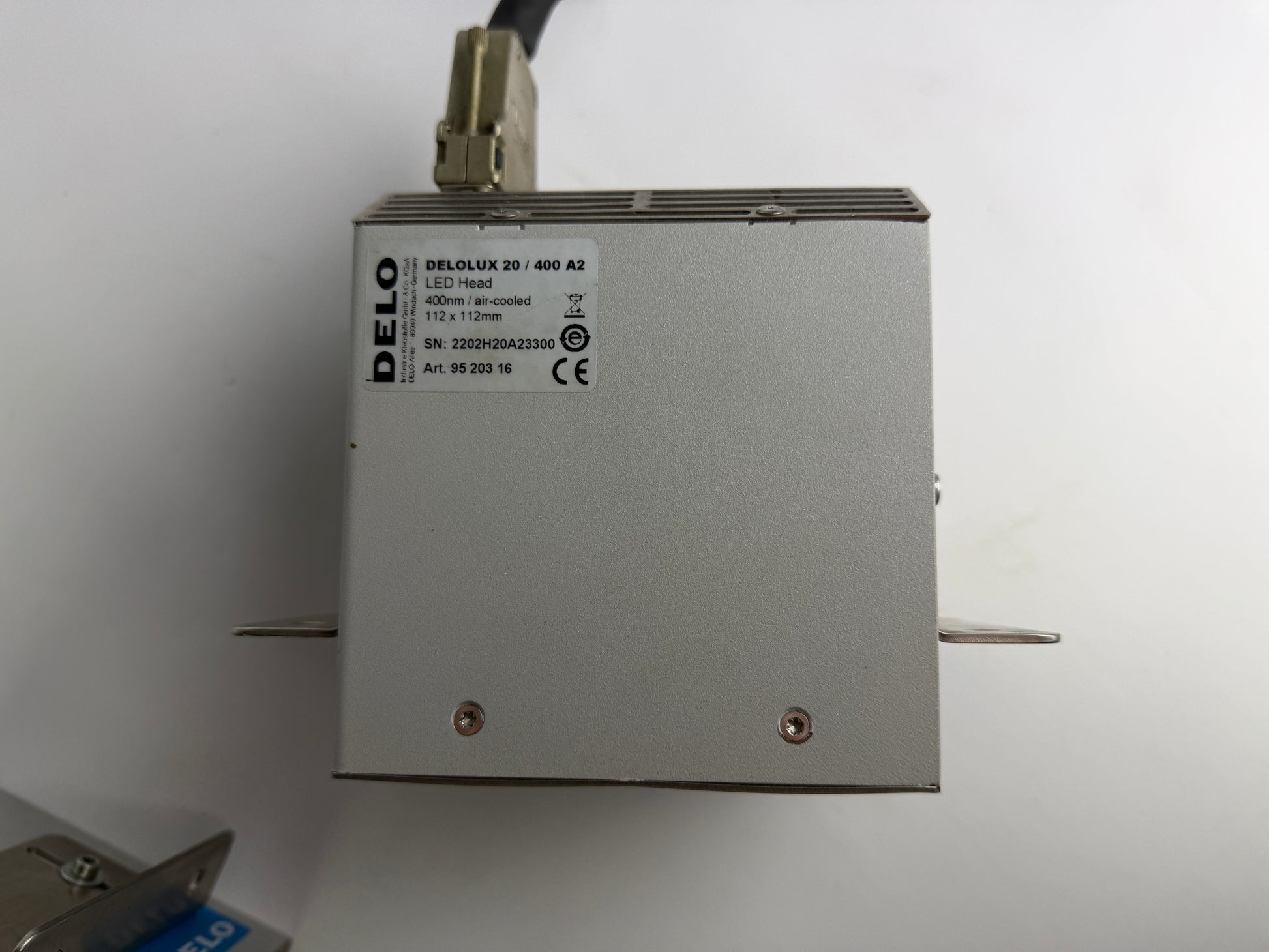

UV LED Heads (each):

• Model: DELOLUX 20/400 A2

• Wavelength: 400 nm

• Cooling: Air-cooled

• Illumination area: 112 mm × 112 mm

• Serial Numbers: included on the labels

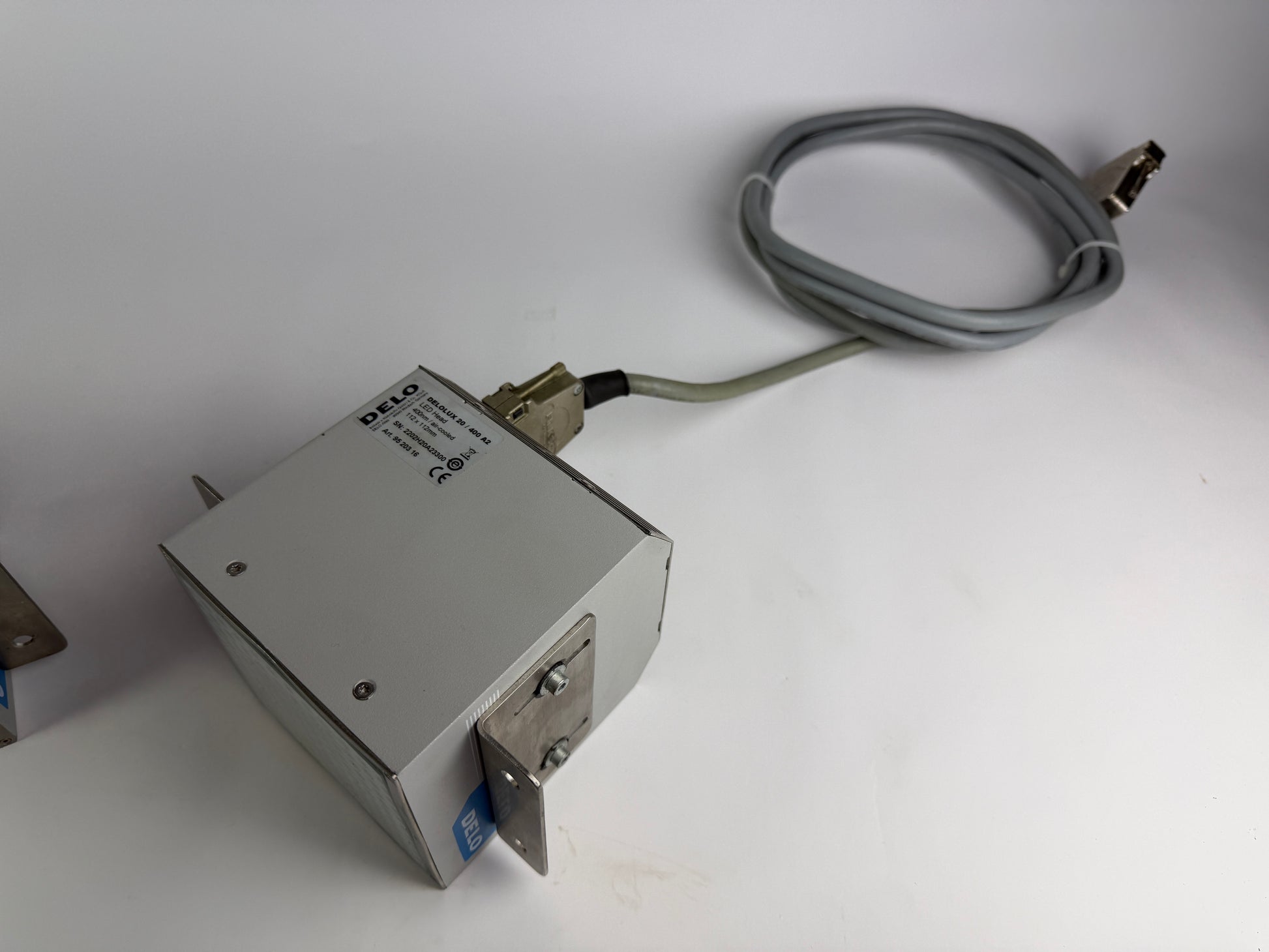

• Cable length: 280 cm

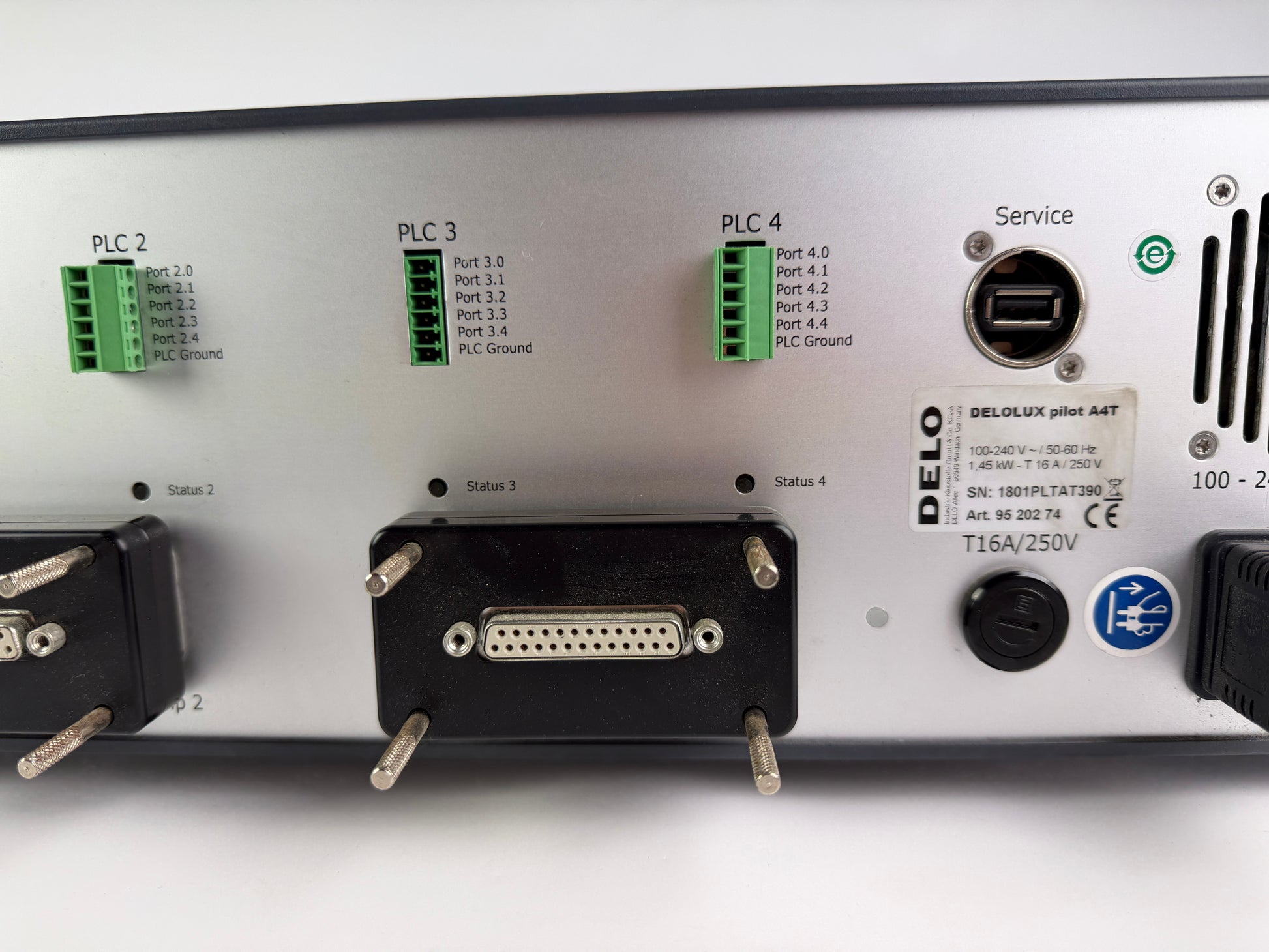

Control Unit (A4T):

• Model: DELOLUX pilot A4T

• Input: 100–240 V AC

• Power: 1.45 kW

• Fuse: T16A

• Port outputs: Up to 4 LED heads

• Power cable length: 180 cm

Condition

• Fully working, tested with both LED heads

• Bright output, even intensity

• Cosmetically excellent

• No damage to connectors, filters, or LED arrays

Perfect for:
Industrial adhesive curing, electronics production, display manufacturing, PCB assembly, medical device fabrication, optical bonding, and automated UV curing stations.

Cable Lengths (included):

• Power cable (A4T): 180 cm

• LED head cables: 280 cm each
